    Oem G652D 6 12 24 Core Single Mode Fiber Optic Cable

    Ask Lasest Price
    Brand Name : jiqian
    Model Number : GYXTW
    Certification : ISO
    Price :
    Payment Terms : Western Union, MoneyGram, T/T, L/C
    Supply Ability : 100km per 2 day
    Delivery Time : 2-4day
    • Product Details
    • Company Profile

    Oem G652D 6 12 24 Core Single Mode Fiber Optic Cable

    GYXTW Duct Armoured G652D Single Mode Oudoor Fiber Optic Cable 6 12 24 Cores

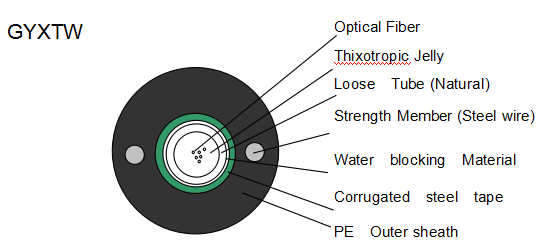

    Cable structure :

    Oem G652D 6 12 24 Core Single Mode Fiber Optic Cable
    Name
    JIQIAN GYXTW Cable
    Fiber
    2-24 Core
    Material
    Fiber---G652D
    Sheath---PE or customized
    Installation way
    Aerial
    Package
    Wooden accessory
    Delivery
    Within 20 days
    By sea, careful ship to your address!

    250μm's fibers are positioned in the central of a loose tube which is made of high modulus plastics and filled with water-resistant filling compound. The tube is wrapped with a layer of the plastic coated steel strip(PSP). Except the tube filling compound, PSP, water-blocking material and the PE sheath, it also has two steel wires in two sides to enhance the crush resistance and flexibility.


    Technical parameters:


    Feature:

    Material of loose tube has good mechanical properties and temperature characteristics

    • Material of loose tube has good hydrolysis resistance and high strength

    • The tube is filled with special filler to provide critical protection for the fiber

    • Good lateral pressure resistance and softness

    • Double chrome plating plastic-coated steel tape (PSP) improves the moisture resistance of optical cables

    • The two parallel steel wires provides enough tensile strength

    • Small diameter, light weight, easy for laying

    Applications

    • Outdoor Duct, overhead


    Optical Characteristics

    Cable

    Count

    Out

    sheath

    Diameter

    Weight

    Minimum

    allowable

    TensileStrength

    (N)

    Minimum

    allowable

    Crush Load

    (N/100nm)

    Minimum

    Bending

    Radius(MM)

    Storage

    Temperature

    (MM)(kg)Short termLong termShort termLong termShort termLong term(°C)
    128.3781500600100030020D10D-40+60

    LCD Delivery<10000m<20000m<50000m>100000m
    25days22days18days10days
    COMPANY PROFILE
    Guangzhou jiqian fiber optical cable co., LTD is located in guangzhou city, guangdong province mingying west 2 road industrial zone, xintang town, is a collection of scientific research, development, production, sales for the integration of large-scale specialization of high-tech joint-stock enterprise, specializing in the production of various specifications of 2-288 core cable.

    FAQ:

    1. Are you the real manufacturer?

    Yes, we are factory in guangzhou china, welcome to visit us!

    2. what is your minimum quantity?

    1KM. We support new project of our customers, trial order is available

    3.Can I get a sample?

    Yes, we provide FREE sample and you just need to pay for express freight.

    4.What about Payment?

    L/C,T/T,Western Union and Paypal are acceptable.

    5.Delivery time?

    Generally 3-7 working days, also it is according to qty.

    6.Can you supply customized products and logo?

    Yes, we supply OEM&ODM service, pls feel free to contact.
