Factory Aerial 4 6 8 12 16 Core Multi Single Mode Figure 8 Outdoor
Fiber Optic Cable
Cable structure:
Loose tube style, a figure-8 optical fiber cable with metallic
central strength member of steel wire/strand and moisture barrier
inner sheath incorporating steel messenger wire suitable for
overhead installation as pole-to-pole or pole-topremises.Tubes
contain optical single-mode or multimode fibers color coded as per
the color coding scheme.
Optical Characteristics:
| G.652D | 50/125μm | 62.5/125μm |
| Attenuation (+20℃) | @850nm | | ≤3.0 dB/km | ≤3.0 dB/km |
| @1300nm | | ≤1.0 dB/km | ≤1.0 dB/km |
| @1310nm | ≤0.36 dB/km | | |
| @1550nm | ≤0.22 dB/km | | |
| Bandwidth (Class A) | @850nm | | ≥500 MHz·km | ≥200 MHz·km |
| @1300nm | | ≥1000 MHz·km | ≥600 MHz·km |
| Numerical Aperture | | 0.200±0.015NA | 0.275±0.015NA |
| Cable Cut-off Wavelength λcc | ≤1260nm | | |
Cable Specification:
Item Name:Fiber optical cable GYTC8S
Optical Mode:Singlemode/Multimode
Fiber Diameters:G652, G655, 50/125μm, 62.5/125μm
Total Fiber Count:2-144
Bend Radius(Static/Dynamic):10D/20D
Working Life:More than 25 years
Application:Aerial self-supporting,Local network,Local network,Long
distance network communication.

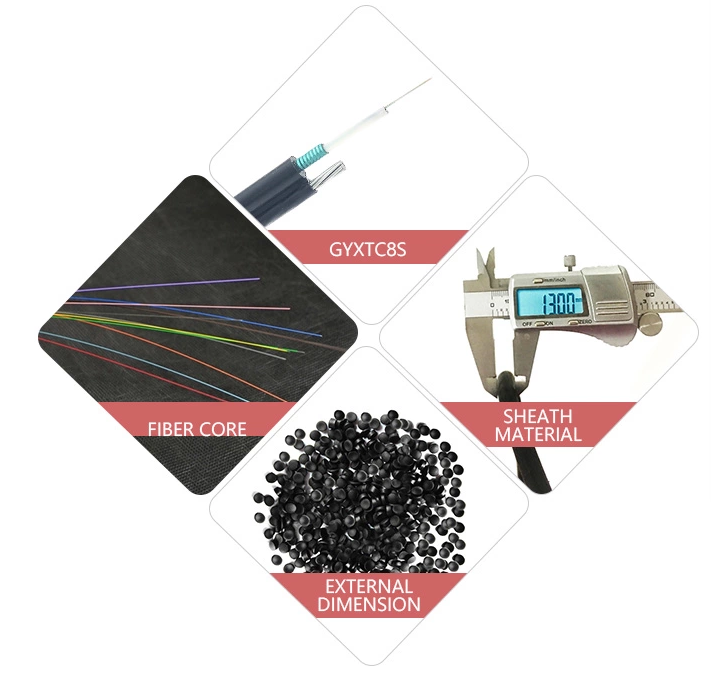

Structure:
Figure 8 non armoured fiber cable consists of :
1.Stranded loose tube
2.Steel wire strength member
3.Core filler compound
4.Fillers
5.Phosphating or Galvanized steel wire
6.PE sheath
Standards and Certificate:
Fiber optical cable complies with Standard YD/T 769-2003,IEC60794-1
Certificate: ISO9001
Characteristics
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of
fiber
· Crush resistance and flexibility
COMPANY PROFILE
Guangzhou jiqian fiber optical cable co., LTD is located in
guangzhou city, guangdong province mingying west 2 road industrial
zone, xintang town, is a collection of scientific research,
development, production, sales for the integration of large-scale
specialization of high-tech joint-stock enterprise, specializing in
the production of various specifications of 2-288 core cable.
FAQ:
1. Are you the real manufacturer?
Yes, we are factory in guangzhou china, welcome to visit us!
2. what is your minimum quantity?
1KM. We support new project of our customers, trial order is
available
3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express
freight.
4.What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.
5.Delivery time?
Generally 3-7 working days, also it is according to qty.
6.Can you supply customized products and logo?
Yes, we supply OEM&ODM service, pls feel free to contact.
