4 6 8 12 Core Self-Supporting 2.0mm Steel Wire Figure 8 GYXTC8S
Fiber Optic Cable

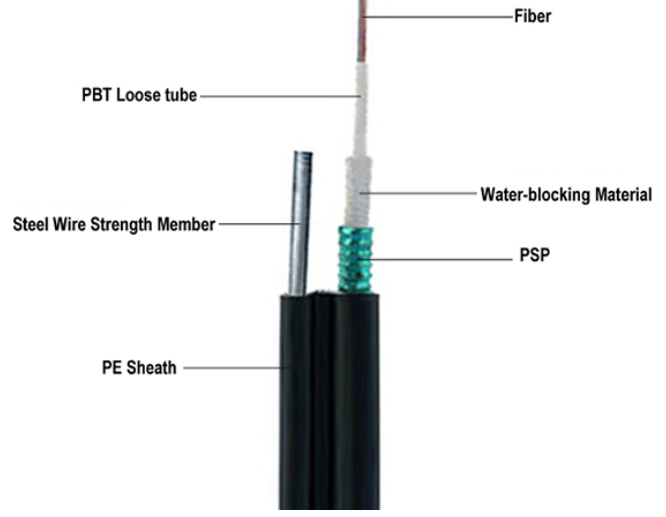

The fibers, 250µm, are positioned in a loose tube made of a high
modulus plastic. The tubes are filled with a water-resistant
filling compound. A steel wire locates in the center of core as a
metallic strength member. Tubes (and fillers) are stranded around
the strength member into a compact and circular cable core. A
corrugated steel is applied around the cable core, which is filled
with the filling compound to protect it from water ingress. This
part of cable accompanied with 2mm or 3mm steel wires , as the supporting part are completed with a
polyethylene(PE) sheath to be figure 8 structure.
Features
1,High tensile strength of stranded wires meet the requirement of
self-supporting and reduce the installation cost
2,Good mechanical and temperature performance
3,High strength loose tube that is hydrolysis resistant
4,Special tube filling compound ensure a critical protection of
fiber
5,The following measures are taken to ensure the cable watertight:
---Steel wire used as the central strength member
---Loose tube filling compound
---100% cable core filling
---PSP enhancing moisture-proof
Optical Characteristics
| Items | Unit | Specification |
| G652D |
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 |
| Cladding Diameter | um | 124.8±0.7 |
| Cladding Non-Circularity | % | ≤0.7 |
| Core-Cladding Concentricity Error | um | ≤0.5 |
| Coating Diameter | um | 245±5 |
| Coating Non-Circularity | % | ≤6.0 |
| Cladding-Coating Concentricity Error | um | ≤12 |
| Cable Cutoff Wavelength | nm | acc≤1260 |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 |
Technical Parameters
| Fiber Model | G.652D |
| Design(Strength Member+Tube) | 2mm steel wire +Unit tube |
| Central Strength Member | Material | Steel Wire or FRP |
| Diameter(+0.05)mm | 1.5 |
| LooseTube | Material | PBT |
| Diameter(+0.06)mm | 2 |
| Thickness(+0.03)mm | 0.32 |
| TheMax.CoreNO./Tube | 12 |
| Filler Rope | Material | PE/HDPE |
| Color | White |
| Diameter(+0.06)mm | 2.1 |
| Strand Strength Member | Material | Galvanized Steel |
| Type | φ0.9x3 |
| Armor layer | Material | Steel Tape |
| OuterSheath | Material | MDPE |
| Thickness(+0.03)mm | 1.8 |
| OuterSheath | Material | MDPE |
| Thickness(40.03)mm | 1.8 |
| CableDiameter(土0.2)mm | 7.5*16.8(nominal) |
| CableWeight(+10)kg/km | 145(nominal) |
| Min.installation/N | 1500 |
| Attenuation | 1310nm | 0.35dB/KM |
| 1550nm | 0.21dB/KM |
| Min.bendingradius | Without Tension | 10.0*Cableφ |
| Under Maximum Tension | 20.0xCableφ |
Picture Show
