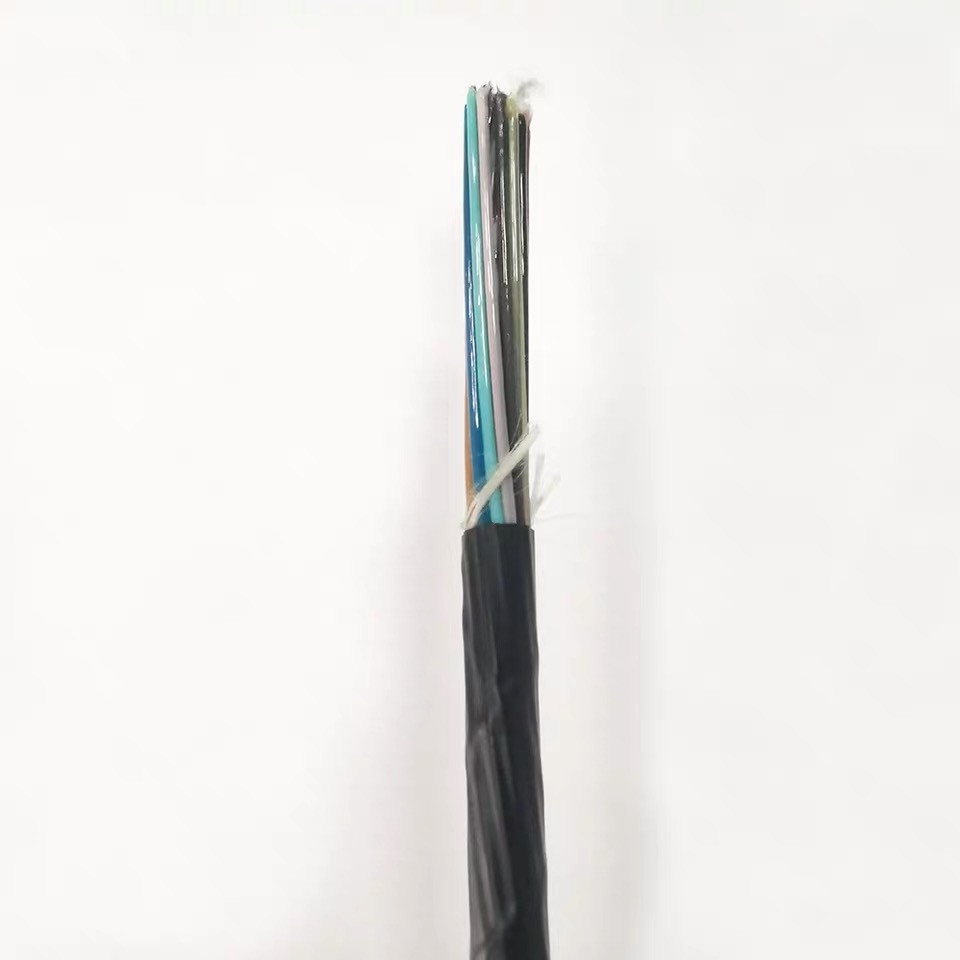

Duct Micro Air Blown 96 Core Fiber Optic Cable GCYFY GCYFTY

Micro Air blown Cable 96 core Fiber Optic Cable GCYFY/GCYFTY

Duct Micro Air blown Cable 96 core Fiber Optic Cable GCYFY/GCYFTY

Product Description

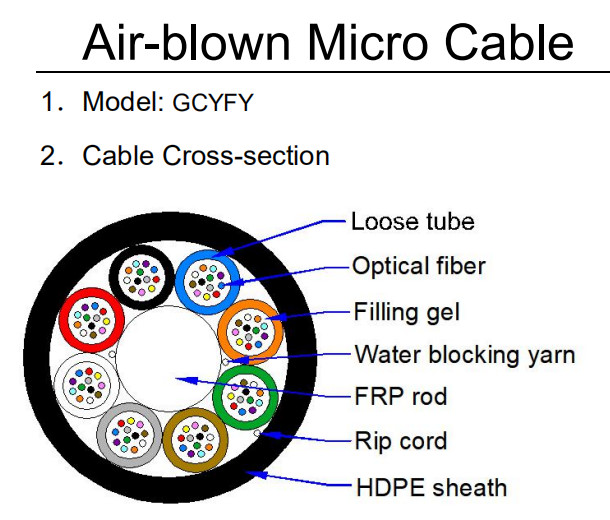

GCYFY loose-shell twisted air-blown micro-cable adopts non-metallic reinforcement and no armor structure, which can be hauled or air-blown micro-pipe in the outer protective tube that has been laid, and then air-blown The laying method breaks through the limitation of the existing pipeline cable laying technology, improves the utilization efficiency of the pipeline, and is easy to expand

Duct Micro Air Blown 96 Core Fiber Optic Cable GCYFY GCYFTY

Optical Characteristics

Item	Specification
Fiber type	G.652D
Attenuation
@ 1310 nm	≤0.36 dB/km
@ 1383 nm	≤0.35 dB/km
@ 1550 nm	≤0.22 dB/km
@ 1625 nm	≤ 0.30 dB/km
Cable Cut-off Wavelength(λcc)	≤1260 nm
Zero Dispersion Wavelength(nm)	1300 ~ 1324 nm
Zero Dispersion Slope	≤0.092 ps/(nm2.km)
Chromatic Dispersion
@ 1288 ~ 1339 nm	≤3.5 ps/(nm. km)
@ 1550 nm	≤18 ps/(nm. km)
@ 1625 nm	≤22 ps/(nm. km)
PMDQ	≤0.2 ps/km1/2
Mode Field Diameter @ 1310 nm	9.2±0.4 um
Core Concentricity Error	≤0.6 um
Cladding Diameter	125.0±0.7 um
Cladding Non-circularity	≤1.0%
Coating Diameter	245±10 um
Proof Test	100 kpsi (=0.69 Gpa), 1%

Fiber & Tube Color

Cable Parameters

#	Items	Unit	Parameters
1	Fiber Count		96
2	No of fiber per tube		12
3	No of loose Tubes		8
4	Loose tube Diameter	mm	1.5
5	Central Strength Member	mm	2.5
6	Outer Sheath	mm	6.6
7	No of Ripcords		1
8	Cable Diameter	mm	6.4±0.1
9	Cable Weight	kg/km	40
10	Attenuation 1310 nm	dB/km	≤0.36dB/km
11	Attenuation 1550 nm	dB/km	≤0.22dB/km
12	Chromatic Disperson 1285-1330 nm	ps/nm.km	≤3.5
13	Chromatic Disperson 1550 nm	ps/nm.km	≤18
14	Cable cut-off wavelength	ʎcc	≤1260nm
15	Fiber Cut-off Wavelength	mm	≤1470
16	Zero Dispersion		1300~1324nm
17	Zero Dispersion Slope	ps/nm2 x km	≤0.092
18	Polarization mode dispersion	ps/km	1.0
19	Polarization mode dispersion	ps/km	0.3
20	Mode Field Diameter	µm	1310 9.2 ± 0.4
21	Mode Field Diameter	µm	1550 10.4 ± 0.8
22	Core Cladding Concentricity Error	µm	≤0.5
23	Cladding Diameter	µm	125±1.0
24	Cladding Non -Circularity	%	≤2.0%
25	Coating -Cladding Concentricity Error	µm	≤12
26	Primary Coating Diameter	µm	125±1.0
27	Primary Coating Material (Uncolored)		245± 10µm
28	Fibre Curl Radius	m	R≥4
29	Tensile Strength	N	Installation : 1000 Max. Operation: 600
30	Crush Resistance	N/mm	800/100
31	Impact Strength	N.m	Impact energy:450g*1m; radius of hammer head: 12.5mm; number of impact: 5 No obvious addition attenuation, no fiber break and no cable damage.
32	Torsion		Load: 150N; number of cycles:10; twist angle:±180° No obvious addition attenuation, no fiber break and no cable damage.
33	Kink	mm	1000N/100mm
34	Min. Bend Radius		Loading 25N,25cycles
35	Installation	˚ C	-15˚ C~+60˚ C
36	Operation	˚ C	-35˚ C~+70˚ C
37	Storage	˚ C	-35˚ C~+70˚ C
