Self-Supporting Steel Strand Outdoor FTTH Fiber Optic Drop Cable
Product Description

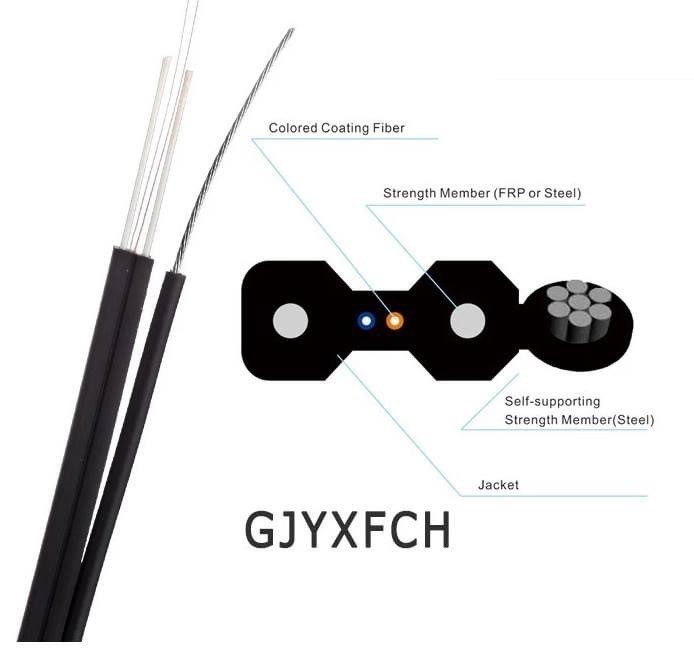

The structure is1-4 colored fibers colored fiber combined with two
FRP (or steel wires),which can protect the fiber inside by
providing sufficient tensile strength and good resistance to
lateral crushing.Drop cable is designed for last-one-mile in the
FTTx network, enhancing the accessibility to the fiber and
maximizes the installation work ability.High tensile of the
diameter 1.0mm steel wire meet the requirement of self-supporting
and reducing the installation cost.Two parallel FRP/ steel wire strength members ensure good
performance of crush resistance to protect the fiber.Novel flute
design, easily strip and splice, simplify the installation and
maintenance.
Features
G657A1 FTTH fiber optical cable
Self-support (LSZH) ,PE,PVC outer sheath drop cable
Outdoor ftth Self-supporting drop cable(GJYXCH/GJYXFCH)
FRP/KFRP or steel wire strength element
Low smoke zero halogen and flame retardant sheath
Outer diameter(2.0±0.2)x(5.0±0.2)mm
Compliant with Telcordia GR-326-CORE specification
Product detail
Fiber Parameters
No. |
Items |
Unit |
Specification |
G.657A1 |
1 |
Mode Field Diameter |
1310nm |
μm |
9.0±0.4 |
1550nm |
μm |
10.1±0.5 |
2 |
Cladding Diameter |
um |
124.8±0.7 |
3 |
Cladding Non-Circularity |
% |
≤0.7 |
4 |
Core-Cladding Concentricity Error |
um |
≤0.5 |
5 |
Coating Diameter |
um |
245±5 |
|
Coating Non-Circularity |
% |
≤6.0 |
7 |
Cladding-Coating Concentricity Error |
μm |
≤12.0 |
8 |
Cable Cutoff Wavelength |
nm |
入cc≤1260 |
9 |
Attenuation(max.) |
1310nm |
dB/km |
≤0.35 |
1550nm |
dB/km |
≤0.21 |
10 |
Macro-Bending Loss |
1turnx10mm radius@1550nm |
dB |
≤0.75 |
1turnx10mm radius@1625nm |
dB |
≤1.5 |
Technical parameters
Product
Model | Fiber
Count
(core) | Cable Diameter(mm) | Cable Weight
(kg/km) | Tensile
Strength
Long/Short
Term(N) | Crush Resistance
Long/ShortTerm(N) | Bending
Radius
Static/Dynamic |
| GJXH | 1 | (2.1+0.1)*(3.1+0.1) | 10 | 1000/2200 | 200/1000 | 15/30 |
| GJXH | 2 | (2.1+0.1)x(3.1+0.1) | 10 | 1000/2200 | 200/1000 | 15/30 |
| GJXH | 4 | (2.3+0.1)*(3.3+0.1) | 12 | 1000/2200 | 200/1000 | |15/30 |
| GJXFH | 1 | (2.1+0.1)x<(3.1+0.1) | 9 | 800/1800 | 200/1000 | 15/30 |
| GJXFH | 2 | (2.1+0.1)x(3.1+0.1) | 9 | 800/1800 | 200/1000 | 15/30 |
| GJXFH | 4 | (2.1+0.1)x(3.1+0.1) | 11 | 800/1800 | 200/1000 | 15/30 |
| GJYXCH | 1 | (2.1+0.1)*(5.1+0.1) | 21 | 1500/2500 | 500/1300 | 15/30 |
| GJYXCH | 2 | (2.1+0.1)*(5.1+0.1) | 21 | 1500/2500 | 500/1300 | |15/30 |
| GJYXCH | 4 | (2.1+0.1)x(5.1+0.1) | 21 | 1500/2500 | 500/1300 | 15/30 |
| GJYXFCH | 1 | (2.1+0.1)*(5.1+0.1) | 20 | 1500/2500 | 500/1300 | 15/30 |
| GJYXFCH | 2 | (2.1+0.1)x(5.1+0.1) | 20 | 1500/2500 | 500/1300 | 15/30 |
| GJYXFCH | 4 | (2.1+0.1)x(5.1+0.1) | 20 | 1500/2500 | 500/1300 | 15/30 |
Application
Adopted to outdoor distribution.
As pigtail of communication equipment
Suitable for communication equipment.
Can be installed conveniently and perated simply
Package
Nominal shipping length of the cable will be 1 or 2 km. Other
length is also available if required by buyer.
Each length of the cable will be wound on a separate strong
wooden.one drum in a carton box
