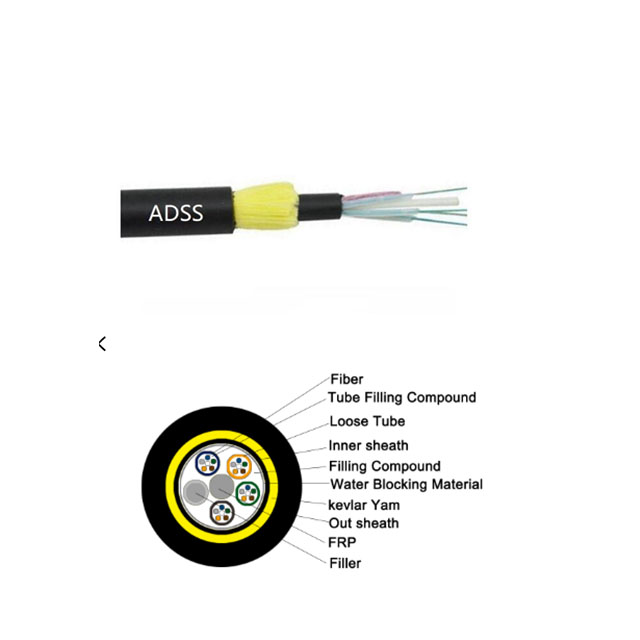

Cable de Fibra Optica Monomodo ADSS de 24 Hilos 48 Hilos 96 Hilos
Features
1. Low attenuation, low dispersion Proper design and precise excess
length control make the cable have outstanding
2. mechanical and environmental performance. 3. Non-metallic
construction makes the cable resist the electromagnetic
interference well. 4. High strength aramid yarn as strength member
ensures high tensile resistance, small diameter and light weight of
the cable, fitting for different weather conditions and different
installation spans. 5. Special AT(anti-tracking) outer sheath
(optional) offers good electro-erosion resisting performance.
Structure and Technical Specifications ADSS-SJ(50-150M)
Ref. Outer
Diameter
(mm) | Ref. Weight
(kg/km) | Rec. Daily Max.
Working Tension (kN) | Max Allowable
Working Tension
(kN) | Break Strength (kN) | Strength Member CSA (mm2) | Modulus of
Elasticity
CSA (kN/mm2) | Heat Expansion Coefficient (x10- 6/K) | Suitable Span
Meter |
| PE Jacket | AT Jacket | A | B | C | D |
| 11 | 110 | 120 | 1.0 | 2.5 | 8 | 3.0 | 6.6 | 2.1 | 120 | 80 | 100 | 80 |
| 11.5 | 115 | 125 | 1.5 | 4 | 10 | 4.5 | 7.3 | 1.8 | 180 | 120 | 150 | 120 |
| 12 | 120 | 130 | 2.5 | 6 | 15 | 7.5 | 8.3 | 1.5 | 250 | 150 | 290 | 150 |
Structure and Technical Specifications ADSS-DJ(50-750M)
Ref. Outer
Diameter
(mm) | Ref. Weight
(kg/km) | Rec. Daily Max.
Working Tension (kN) | Max Allowable
Working Tension
(kN) | Break Strength (kN) | Strength Member CSA (mm2) | Modulus of
Elasticity
CSA (kN/mm2) | Heat Expansion Coefficient (x10- 6/K) | Suitable Span
Meter |
| PE Jacket | AT Jacket | A | B | C | D |
| 12.5 | 125 | 136 | 1.5 | 4 | 10 | 4.6 | 7.6 | 1.8 | 160 | 100 | 140 | 100 |
| 13.0 | 132 | 142 | 2.25 | 6 | 15 | 7.6 | 8.3 | 1.5 | 230 | 150 | 200 | 150 |
| 13.3 | 137 | 148 | 3.0 | 8 | 20 | 10.35 | 9.45 | 1.3 | 300 | 200 | 290 | 200 |
| 13.6 | 145 | 156 | 3.6 | 10 | 24 | 13.8 | 10.8 | 1.2 | 370 | 250 | 350 | 250 |
| 13.8 | 147 | 159 | 4.5 | 12 | 30 | 14.3 | 11.8 | 1.0 | 420 | 280 | 400 | 280 |
| 14.5 | 164 | 177 | 5.4 | 15 | 36 | 18.4 | 13.6 | 0.9 | 480 | 320 | 460 | 320 |
| 14.9 | 171 | 185 | 6.75 | 18 | 45 | 22.0 | 16.4 | 0.6 | 570 | 380 | 550 | 380 |
| 15.1 | 179 | 193 | 7.95 | 22 | 53 | 26.4 | 18.0 | 0.3 | 670 | 460 | 650 | 460 |
| 15.5 | 190 | 204 | 9.0 | 26 | 60 | 32.2 | 19.1 | 0.1 | 750 | 530 | 750 | 510 |
Optical characteristic
Fiber type | Attenuation (+20℃) | Bandwidth | Numerical aperture | Optical cable cut-off wavelength |
|---|
@850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm |
|---|
| G.652 | --- | --- | ≤0.36dB/km | ≤0.22dB/km | --- | --- | --- | ≤1260nm |
| G.655 | --- | --- | ≤0.40dB/km | ≤0.23dB/km | --- | --- | --- | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | --- | --- | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | --- |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | --- | --- | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | --- |
Application: Self-supporting overhead
Packing:
FAQ
1,Q:Are you a factory or trade company?
A:We are a factory
2,Q:What is the MOQ?
A:The MOQ of Fiber Optic cable is 1km.
3.Q:Which brand of fiber do you use?
A:YOFC,Fiberhome,etc
4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our
customers as we know business is always from small order.
5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It
depends on the order quantity.
6.Can you supply customized products and logo?
A:Yes. We supply OEM service.
7.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before
shipment.
