Single Mode 12 Core Outdoor Fiber Optic Cable For Telecommunication

Guangzhou Jiqian Fiber Optic Cable Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Single Mode 12 Core Outdoor Fiber Optic Cable For Telecommunication from wholesalers

    Buy cheap Single Mode 12 Core Outdoor Fiber Optic Cable For Telecommunication from wholesalers
    • Buy cheap Single Mode 12 Core Outdoor Fiber Optic Cable For Telecommunication from wholesalers
    • Buy cheap Single Mode 12 Core Outdoor Fiber Optic Cable For Telecommunication from wholesalers
    • Buy cheap Single Mode 12 Core Outdoor Fiber Optic Cable For Telecommunication from wholesalers
    • Buy cheap Single Mode 12 Core Outdoor Fiber Optic Cable For Telecommunication from wholesalers

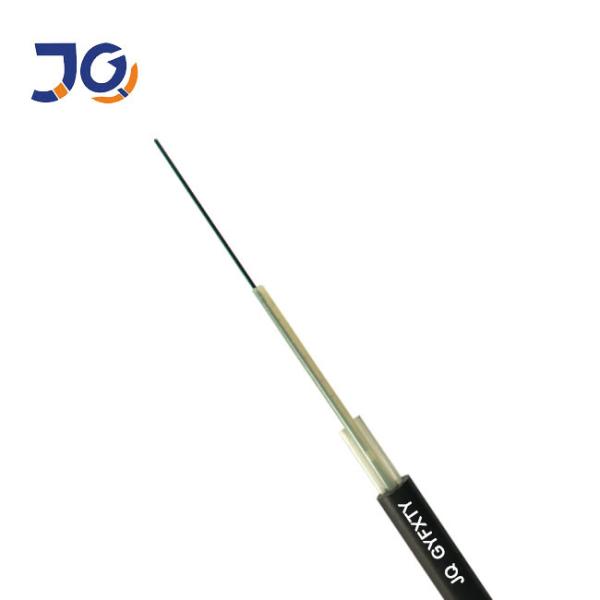

    Single Mode 12 Core Outdoor Fiber Optic Cable For Telecommunication

    Ask Lasest Price
    Brand Name : jiqian
    Model Number : GYFXTY
    Certification : ISO
    Payment Terms : Western Union, MoneyGram, T/T, L/C
    Supply Ability : 100km per 2 day
    Delivery Time : 2-4day
    • Product Details
    • Company Profile

    Single Mode 12 Core Outdoor Fiber Optic Cable For Telecommunication

    telecommunication Use outdoor GYFXTY Single Mode G652D 12 Core Fiber optic cable

    Manufacturing 2 4 6 8 12 Core Fiber Optic Cable Gyfxty Optical Outdoor Cable

    Optical Characteristics:
    G.652
    G.655
    50/125μm
    62.5/125μm
    Attenuation (+20℃)
    @850nm
    ≤3.0dB/km
    ≤3.0dB/km
    @1300nm
    ≤1.0dB/km
    ≤1.0dB/km
    @1310nm
    ≤0.36dB/km
    ≤0.40dB/km
    @1550nm
    ≤0.22dB/km
    ≤0.23dB/km
    Bandwidth(Class A)
    @850nm
    ≥500MHz·km
    ≥200MHz·km
    @1300nm
    ≥1000MHz·km
    ≥600MHz·km
    Numerical Aperture
    0.200±0.015NA
    0.275±0.15NA
    Cable Cut-off Wave length
    ≤1260nm
    ≤1480nm

    Structure and Technical Specifications OF GYFXTY :

    Fiber count
    Cable diameter(mm)
    Nominal weight(KGS)
    Allowable Tensile Load(mm)
    Allowable Crush Resistance(N/100m)
    Short term
    Long term
    Short term
    Long term
    2-12
    6.0-9.0
    60
    1500
    600
    1500
    600

    Feature:

    1.Good mechanical and temperature resistant performance.
    2.Uni-tube gel-filled construction for superior fiber protection.
    3.Two parallel steel wires ensure tensile strength.
    4.PE sheath protects cable from ultraviolet radiation.
    5.Light weight and small diameter, easy to installation and operation.


    FAQ:

    1. Are you the real manufacturer?
    Yes, we are factory in guangzhou china, welcome to visit us

    2. what is your minimum quantity?
    1KM. We support new project of our customers, trial order is available

    3.Can I get a sample?
    Yes, we provide FREE sample and you just need to pay for express freight.

    4.What about Payment?
    L/C,T/T,Western Union and Paypal are acceptable.

    5.Delivery time?
    Generally 3-7 working days, also it is according to qty.

    6.Can you supply customized products and logo?
    Yes, we supply OEM&ODM service, pls feel free to contact.
