144 Core 3km G652D PE Jacket ADSS Fiber Optic Cable

Ask Lasest Price
Brand Name :	JQ/OEM
Model Number :	ADSS
Certification :	ISO9001,ROHS,CE
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	200KM Per day
Delivery Time :	3-4 work days

Add to Cart

Product Details
Company Profile

144 Core 3km G652D PE Jacket ADSS Fiber Optic Cable

FIBER OPTIC CABLE TYPES ADSS Optical Fibre Span 100M with PE Jacket Self-supporting Aerial Cable

3km G652D PE Jacket singlemode ADSS Fiber Optic Cable

Features:

◇low transmission attenuation and dispersion.
◇Reasonable design, precise control of excess length of fibers in
the loose tube
and optimum cabling process provides the cable excellent mechanical
and
environmental properties.
◇ The SZ-stranded, loose tube design isolated fibers from
installation and
environmental rigors.
◇The water blocking gel filled core design provides the cable
excellent water-proof
performance and moisture-resistance, with smaller size.
◇Excellent flexibility.
◇Due to the non-metallic structure, the cable is light and easy in
laying and has a
very strong ability of anti-electromagnetic disturbance.
◇The cable is very suitable for self-supporting installation mode
and has a high
tensile strength along with a powerful harsh-environment surviving
capability.

Description:

Loose tube design, non-metallic central strength member, SZ
stranded core filled with gel, aramid yam assistant strength
member, outer PE sheath (Anti-tracking sheath used for voltages
above 110kV)

Optical Characteristics

Items		Unit	Specification
Items		Unit	G652D
Mode Field Diameter	1310nm	um	9.2±0.4
Mode Field Diameter	1550nm	um	10.4±0.5
Cladding Diameter		um	124.8±0.7
Cladding Non-Circularity		%	≤0.7
Core-Cladding Concentricity Error		um	≤0.5
Coating Diameter		um	245±5
Coating Non-Circularity		%	≤6.0
Cladding-Coating Concentricity Error		um	≤12
Cable Cutoff Wavelength		nm	acc≤1260
Attenuation(max.)	1310nm	dB/km	≤0.36
Attenuation(max.)	1550nm	dBkm	≤0.22

Technical Data

Structure and Technical Specifications ADSS-DJ(50-500m Span)

Ref.Outer Diameter (mm)	Ref.Weight kg/km)		Rec.DailyMax. Working Tension(kN)	Max Allowable Working Tension [kN)	Break Strength (kN)	Strength Member CSA. (kN/mm2)	Modulusof Elasticity CSA kNmm2)[	Heat Expansion Coefficient (X10-6/K)	SuitableSpan Meter ABICP
Ref.Outer Diameter (mm)	PE	AT		Max Allowable Working Tension [kN)	Break Strength (kN)	Strength Member CSA. (kN/mm2)	Modulusof Elasticity CSA kNmm2)[	Heat Expansion Coefficient (X10-6/K)	SuitableSpan Meter ABICP
12.5	125	136	1.5	4	10	4.6	7.6	1.8	160	100	140	100
13.0	132	142	2.25	6	15	7.6	8.3	1.5	230	150	200	150
13.3	137	148	3.0	8	20	10.35	9.45	1.3	300	200	290	200
13.6	145	156	3.6	10	24	13.8	10.8	1.2	370	250	350	250
13.8	147	159	4.5	12	30	14.3	11.8	1.0	420	280	400	280
14.5	164	177	5.4	15	36	18.4	13.6	0.9	480	320	460	320
14.9	171	185	6.75	18	45	22.0	16.4	0.6	570	380	550	380
15.1	179	193	7.95	22	53	26.4	18.0	0.3	670	460	650	460
15.5	190	204	9.0	26	\|60	32.2	19.1	0.1	750	530	750	510

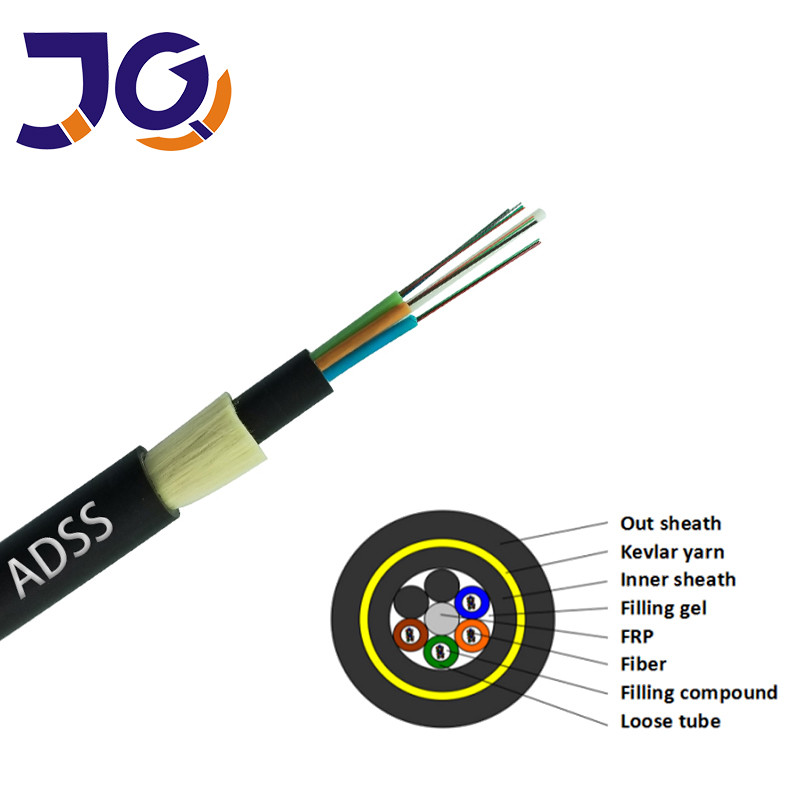

Product Picture

144 Core 3km G652D PE Jacket ADSS Fiber Optic Cable

Application

1.Suitable for Aerial Laying method

2.Storage / Operating Temperature: -40℃~+70℃

Package Detail

1.Export Wooden drum,Normal shipping length of the cable can be 1km ~5km.

2.Other length is also available if required by buyer.

3.Mark:Usually we only attach the test report on the packaging, and your requestment is also accptable.

4.Printing on the wooden drum

For example:

A.Company Name
B.Gross/Net Weight
C.Fiber Type

D.production date

Customer Choose

FAQ

1.Are you tradning company or manufacturer?

We are the manufacturer with 10 years' experience ,we are specialized in research,development and production

for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!

2.About the quality?

We will delivery before tested every fibers when finished production.

After price confirmation, you can require for free samples to check our quality.

3.Can you accept small order?

Yes, small order is available. We support new project of our customers, as we know business is always from small order.

4.What is your delivery time?

Usually about 3-7days working days,it mainly depend on order quantity.

But pls be assured that we will arrange your goods asap after your payment .

5.Can you accept the OEM service?

Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
