Self-Supporting Double Sheath DADJ Aerial Fig 8 GYTC8S53 Outdoor
Fiber Optic Cable

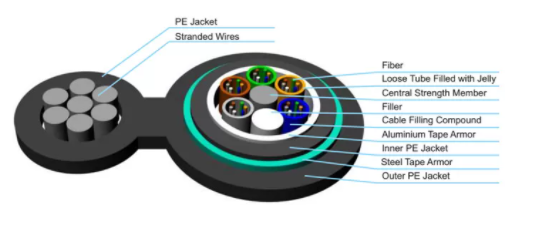

The fibers, 250µm, are positioned in a loose tube made of a high
modulus plastic. The tubes are filled with a water-resistant
filling compound. A steel wire locates in the center of core as a
metallic strength member. Tubes (and fillers) are stranded around
the strength member into a compact and circular cable core. Double
corrugated steel is applied around the cable core, which is filled
with the filling compound to protect it from water ingress. This
part of cable accompanied with the strand wires, as the supporting
part are completed with double polyethylene (PE) sheath to be
figure 8 structure.High tensile strength of stranded wires meet the requirement of
self-supporting and reduce the installation cost.
Features
Loose tube filling compound
100% cable core filling,
PSP enhancing moisture-proof
Self-Supporting fiber optic cable
Double Armored Double Sheath(DADJ)
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Steel wire or FRP used as the central strength member
Technical Parameters
| Fiber Type | G.652 | G.655 | 50/125μm | 62.5/125μm |
| Attenuation(+20℃) | 850 nm | | | ≤3.0 dB/km | ≤3.3 dB/km |
| 1300 nm | | | ≤1.0 dB/km | ≤1.0 dB/km |
| 1310 nm | ≤0.36 dB/km | ≤0.40 dB/km | | |
| 1550 nm | ≤0.22 dB/km | ≤0.23 dB/km | | |
| Bandwidth | 850 nm | | | ≥500 MHz·km | ≥200 Mhz·km |
| 1300 nm | | | ≥500 MHz·km | ≥500 Mhz·km |
| Numerical Aperture | | | 0.200±0.015 NA | 0.275±0.015 NA |
| Cable Cut-off Wavelength λcc | ≤1260 nm | ≤1450 nm | | |
Structure and Technical Specifications (7×1.0mm-Steel Stranded
Wire)
Fiber
Count | Nominal
Diameter
(mm) | Nominal
Weight
(kg/km) | Max Fiber
Per Tube | Max No. of
(Tubes+fillers) | Allowable Tensile Load(N) | Allowable Crush Resistance(N/100mm) |
| Short Term | Long Term | Short Term | Long Term |
| 4~36 | 12x19.2 | 230 | 12 | 6 | 4000 | 2000 | 3000 | 1000 |
| 38~72 | 14x19.2 | 260 | 12 | 6 | 4000 | 2000 | 3000 | 1000 |
| 74~96 | 14x19.2 | 310 | 12 | 6 | 4000 | 2000 | 3000 | 1000 |
Samples Picture
Packing & Delivery
FAQ
1.Are you the real manufacturer?
Yes. We are the real manufacturer with 10 years’ history.
2.Can you accept small order?
Yes, small order is available .We support new project of our
customers as we know business is always from small order.
3.What is your warranty period?
25 years for fiber optic cable
4.What is your delivery time?
Usually within 3-5 working days
5.What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 6,000,000
KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
6.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
