Aerial Fiber Cable GYFXTY GYXTW GYTC8S ADSS Outdoor Fiber Optic
Cable Types

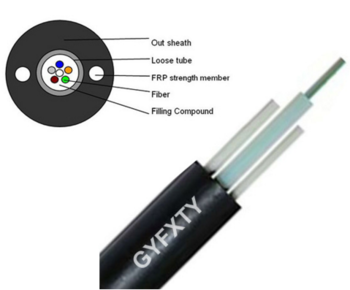

Product Description
The fibers are positioned in a loose tube made of a high modulus
plastic.The tubes are filled with a water-resistant filling
compound. The tube is wrapped with a layer of water blocking
system. Two parallel FRP are placed at the two sides.
The cable is completed with a polyethylene (PE) sheath.2-12core single mode unit tube fiber cable GYFXTY non-metallic
outdoor optic fiber cable
Features
Good mechanical and temperature resistant performance.
Uni-tube gel-filled construction for superior fiber protection.
Two parallel steel wires ensure tensile strength.
PE sheath protects cable from ultraviolet radiation.
Light weight and small diameter, easy to installation and
operation.
Optical Characteristics
|
|
G.652 |
G.655 |
50/125μm |
62.5/125μm |
Attenuation(+20C) |
@850nm |
|
|
≤3.0dB/km |
≤3.0dB/km |
@1300nm |
|
|
≤1.0dB/km |
≤1.0dB/km |
@1310nm |
≤036dB/km |
≤0.40dB/km |
|
|
@1550nm |
≤0.22dB/km |
≤0.23dB/km |
|
|
Bandwidth(ClassA) |
@850nm |
|
|
≤2500MHz-km |
≥2200MHz.km |
@1300nm |
|
|
≤1000MHz.km |
≥2600MHz-km |
Numerical Aperture |
|
|
0.200±0.015NA |
0.275±0.15NA |
CableCut-off Wavelength |
≤1260m |
≤1480nm |
|
|
Structure and Technical Specification OF GYFXTY
Unit tube GYFXTY Fiber Optic Cable
Fiber count |
Cable diameter(mm) |
Nominal weight(KGS) |
AllowableTensileLoad(mm) |
Allowable Crush Resistance(N/100m) |
Short term |
Long term |
Short term |
Long term |
2-12 |
8.0 |
60 |
800N |
400N |
1000N/100m |
300N/100m |
Package
Packed in enclosed fumigated wooden drum,1/2/3/4/5km per drum ,customer's requirements are also welcomed;
Shipping way
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)
FAQ
1.Are you tradning company or manufacturer?
We are the manufacturer with 10 years' experience ,we are
specialized in research,development and production
for fiber optic cable,drop cable and path cord ect. Our factory is
in Guangzhou city,welcome to visit us!
2.About the quality?
We will delivery before tested every fibers when finished
production.
After price confirmation, you can require for free samples to check our quality.
3.Can you accept small order?
Yes, small order is available. We support new project of our
customers, as we know business is always from small order.
4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order
quantity.
But pls be assured that we will arrange your goods asap after your
payment .
5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the
product. Any idea from you is available.
6.Do you offer guarantee for the products?
Yes, we offer 10-20 years warranty to our formal products.
