Fiber To The Home 4 Core Self Supporting G657A1 Aerial Drop Cable GJYXCH/GJYXFCH
Fiber To The Home 4 Core Self Supporting G657A1 Aerial Drop Cable
Description
The structure is1-4 colored fibers colored fiber combined with two FRP (or steel wires),which can protect the fiber inside by providing sufficient tensile strength and good resistance to lateral crushing.Drop cable is designed for last-one-mile in the FTTx network, enhancing the accessibility to the fiber and maximizes the installation work ability.High tensile of the diameter 1.0mm steel wire meet the requirement of self-supporting and reducing the installation cost.Two parallel FRP/ steel wire strength members ensure good performance of crush resistance to protect the fiber.Novel flute design, easily strip and splice, simplify the installation and maintenance.
Application
Adopted to outdoor distribution.
As pigtail of communication equipment
Suitable for communication equipment.
Can be installed conveniently and perated simply
Features
G657A1 FTTH fiber optical cable
Self-support (LSZH) ,PE,PVC outer sheath drop cable
Outdoor ftth Self-supporting drop cable(GJYXCH/GJYXFCH)
FRP/KFRP or steel wire strength element
Low smoke zero halogen and flame retardant sheath
Outer diameter(2.0±0.2)x(5.0±0.2)mm
Compliant with Telcordia GR-326-CORE specification
Product detail
Fiber Parameters
| No. | Items | Unit | Specification |
| G.657A1 |
| 1 | Mode Field Diameter | 1310nm | μm | 9.0±0.4 |
| 1550nm | μm | 10.1±0.5 |
| 2 | Cladding Diameter | um | 124.8±0.7 |
| 3 | Cladding Non-Circularity | % | ≤0.7 |
| 4 | Core-Cladding Concentricity Error | um | ≤0.5 |
| 5 | Coating Diameter | um | 245±5 |
| | Coating Non-Circularity | % | ≤6.0 |
| 7 | Cladding-Coating Concentricity Error | μm | ≤12.0 |
| 8 | Cable Cutoff Wavelength | nm | 入cc≤1260 |
| 9 | Attenuation(max.) | 1310nm | dB/km | ≤0.35 |
| 1550nm | dB/km | ≤0.21 |
| 10 | Macro-Bending Loss | 1turnx10mm radius@1550nm | dB | ≤0.75 |
| 1turnx10mm radius@1625nm | dB | ≤1.5 |
Technical parameters
Product
Model | Fiber
Count
(core) | Cable Diameter(mm) | Cable Weight
(kg/km) | Tensile
Strength
Long/Short
Term(N) | Crush Resistance
Long/ShortTerm(N) | Bending
Radius
Static/Dynamic |
| GJXH | 1 | (2.1+0.1)*(3.1+0.1) | 10 | 1000/2200 | 200/1000 | 15/30 |
| GJXH | 2 | (2.1+0.1)x(3.1+0.1) | 10 | 1000/2200 | 200/1000 | 15/30 |
| GJXH | 4 | (2.3+0.1)*(3.3+0.1) | 12 | 1000/2200 | 200/1000 | |15/30 |
| GJXFH | 1 | (2.1+0.1)x<(3.1+0.1) | 9 | 800/1800 | 200/1000 | 15/30 |
| GJXFH | 2 | (2.1+0.1)x(3.1+0.1) | 9 | 800/1800 | 200/1000 | 15/30 |
| GJXFH | 4 | (2.1+0.1)x(3.1+0.1) | 11 | 800/1800 | 200/1000 | 15/30 |
| GJYXCH | 1 | (2.1+0.1)*(5.1+0.1) | 21 | 1500/2500 | 500/1300 | 15/30 |
| GJYXCH | 2 | (2.1+0.1)*(5.1+0.1) | 21 | 1500/2500 | 500/1300 | |15/30 |
| GJYXCH | 4 | (2.1+0.1)x(5.1+0.1) | 21 | 1500/2500 | 500/1300 | 15/30 |
| GJYXFCH | 1 | (2.1+0.1)*(5.1+0.1) | 20 | 1500/2500 | 500/1300 | 15/30 |
| GJYXFCH | 2 | (2.1+0.1)x(5.1+0.1) | 20 | 1500/2500 | 500/1300 | 15/30 |
| GJYXFCH | 4 | (2.1+0.1)x(5.1+0.1) | 20 | 1500/2500 | 500/1300 | 15/30 |
Package
Nominal shipping length of the cable will be 1 or 2 km. Other length is also available if required by buyer.

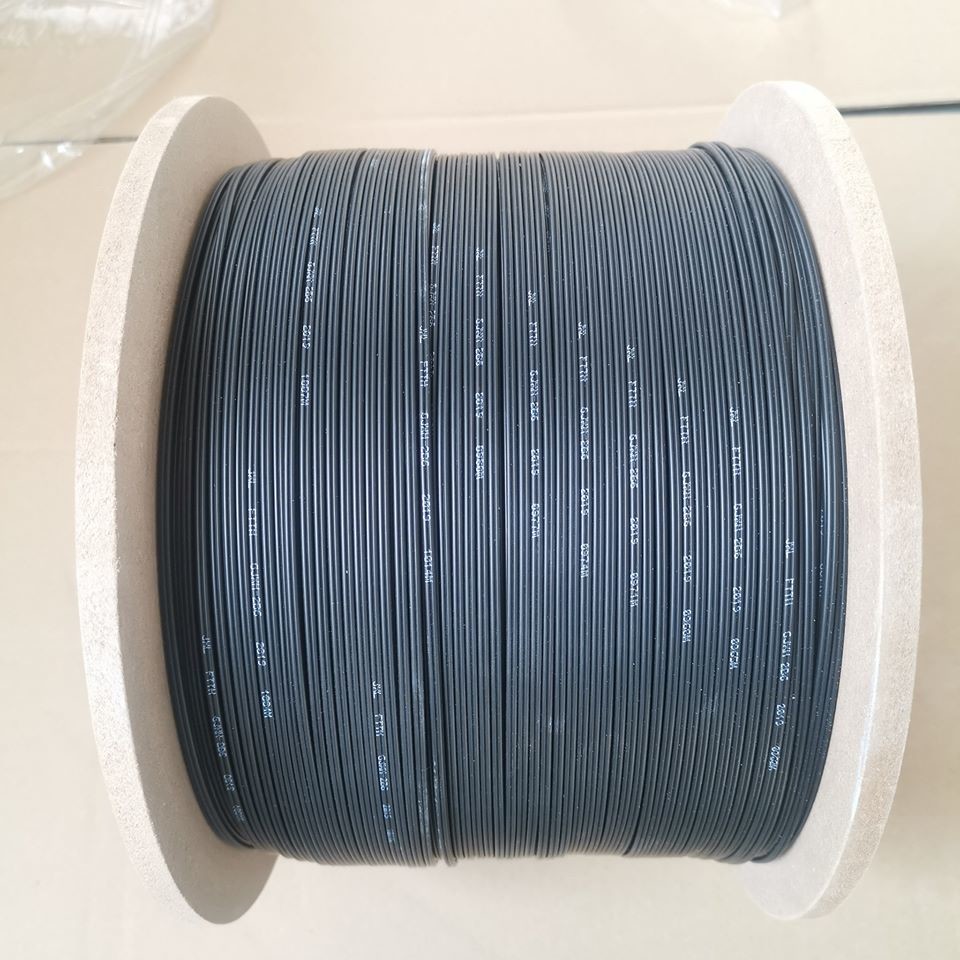

Each length of the cable will be wound on a separate strong wooden.one drum in a carton box
FAQ
1.Are you trading company or manufacturer?
We are the manufacturer with 10 years' experience ,we are specialized in research,development and production
for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!
2.About the quality?
We will delivery before tested every fibers when finished production.
After price confirmation, you can require for free samples to check our quality.
3.Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.
4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .
5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
