ADSS Outdoor G65D Overhead 48 96 Core SM Single Mode Aerial Cable

Ask Lasest Price
Brand Name :	jiqian
Model Number :	ADSS 12core
Certification :	ISO9001
Payment Terms :	Western Union, MoneyGram, T/T, L/C
Supply Ability :	4500km per Month
Delivery Time :	2-4days

Add to Cart

Product Details
Company Profile

ADSS Outdoor G65D Overhead 48 96 Core SM Single Mode Aerial Cable

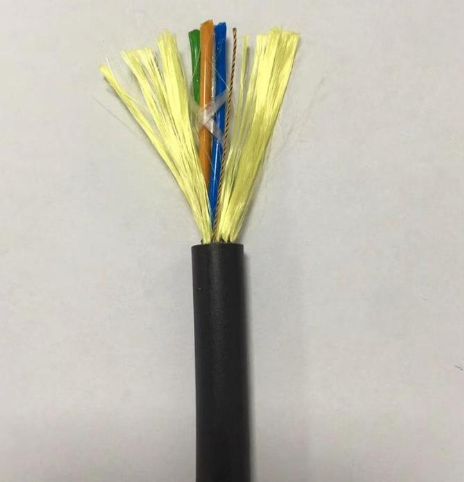

ADSS single-sheathed fiber optic cable adopts stranded Loose tube structure. The optical fiber is inserted into the loose tube made of high-modulus polyester material, and the waterproof compound is filled in the tube.The loose tube (and fillers) is twisted around the non-metallic strengthen member (FRP3) to form a compact cable core. The cable core is wrapped by water blocking tape and stranded with Kevlar Aramid fiber with reinforcing effect. Finally, a PE jacket or an AT)jacket is extruded.

Features:

1.Can be installed without shutting off the power.
2.Excellent mechanical performance.
3.Good performance of tensile strength and temperature.
4.Light weight and small diameter reducing the load caused by ice/wind, as well as the load on towers
and backprops.
5.Long life span time over 30 years.

Applications:

Widely used in self support aerial / overhead.

Optical Performance:

Fiber Type	G.652D,125.0+-1.0μm
Mode Field Diameter	9.2+-0.2μm at 1310 nm
Cladding Diameter	125+-1μm
Cladding Non-Circularity	<=1%
Coating Diameter	245+-10μm
Attenuation Coefficient	<=0.38dB/km at 1310nm,<=0.22dB/km at 1550nm
Chromatic Dispersion	<=3.5ps/nm/km at1285-1330nm,<=18ps/nm/km at 1550nm
Zero Disperson Wavelength	1300-1322nm
PMD Coefficient	<=0.2ps/√km

Cable Parametres:

Model No.	ADSS
Fiber count	2-144 cores
Fiber type	SM G652D
Central Strangth member	FRP
Loose tube	PBT
Type of filling compound	Jelly
Water-blocking system	Water blocking tape
Strength member	Kevlar yarn
Inner sheath	PE
Outer sheath	PE/AT
Applicantion	Overhead;Ariel for telecommunication

Packing:

1.Each single length of cable shall be reeled on Fumigated Wooden Drum suitable for long distance shipment.

Covered by plastic buffer sheet.

2.Sealed by strong wooden battens.

3.At least 1 meter inside end of cable will be reserved for testing.

FAQ:

1. Are you the real manufacturer?
Yes, we are factory in guangzhou china, welcome to visit us!

2. what is your minimum quantity?
1KM. We support new project of our customers, trial order is available

3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.

4.What about Payment?

L/C,T/T,Western Union and Paypal are acceptable.

5.Delivery time?

Generally 3-7 working days, also it is according to qty.

6.Can you supply customized products and logo?
Yes, we supply OEM&ODM service, pls feel free to contact.

7.Which brand of fiber do you use?

Corning,YOFC,Fiberhome,etc

Thank you very much for viewing this page, and wish you a nice day!
