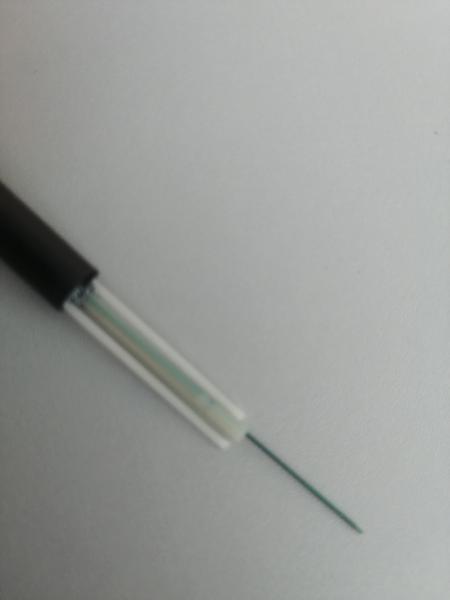

GYFXTY aerial FRP Strength Member Single mode Outdoor fiber optic
cable
FTTX central tubes FOC 2-24 Core GYFXTY Uni-Loose Tube FTTH G652D
Optical Cable
| |
| |
| |
| Singlemode G.652D / G.657A1 |
| |
| |
| |
| 5.5 mm 6.0 mm 6.5 mm 7.0 mm |
| |
| |
| |
| | G.652 | G.655 | 50/125μm | 62.5/125μm |
Attenuation (+20℃) | @850nm | | | ≤3.0dB/km | ≤3.0dB/km |
@1300nm | | | ≤1.0dB/km | ≤1.0dB/km |
@1310nm | ≤0.36dB/km | ≤0.40dB/km | | |
@1550nm | ≤0.22dB/km | ≤0.23dB/km | | |
Bandwidth(Class A) | @850nm | | | ≥500MHz·km | ≥200MHz·km |
@1300nm | | | ≥1000MHz·km | ≥600MHz·km |
Numerical Aperture | | | 0.200±0.015NA | 0.275±0.15NA |
Cable Cut-off Wave length | ≤1260nm | ≤1480nm | | |
Structure and Technical Specifications OF GYFXTY :
Fiber count | Cable diameter(mm) | Nominal weight(KGS) | Allowable Tensile Load(mm) | Allowable Crush Resistance(N/100m) |
Short term | Long term | Short term | Long term |
2-12 | 6.0-9.0 | 60 | 1500 | 600 | 1500 | 600 |
Feature:
1.Good mechanical and temperature resistant performance.
2.Uni-tube gel-filled construction for superior fiber protection.
3.Two parallel steel wires ensure tensile strength.
4.PE sheath protects cable from ultraviolet radiation.
5.Light weight and small diameter, easy to installation and
operation.
FAQ:
1. Are you the real manufacturer?
Yes, we are factory in guangzhou china, welcome to visit us!
2. what is your minimum quantity?
1KM. We support new project of our customers, trial order is
available
3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express
freight.
4.What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.
5.Delivery time?
Generally 3-7 working days, also it is according to qty.
6.Can you supply customized products and logo?
Yes, we supply OEM&ODM service, pls feel free to contact.
