Brand Name : | Jiqian/OEM/ODM |
Model Number : | ADSS-48B1.3 |
Certification : | ISO 9001/CE/ROHS/FCC |
Payment Terms : | L/C, T/T, Western Union,Alipay |
Delivery Time : | 5-7days,it depends on order quantity |

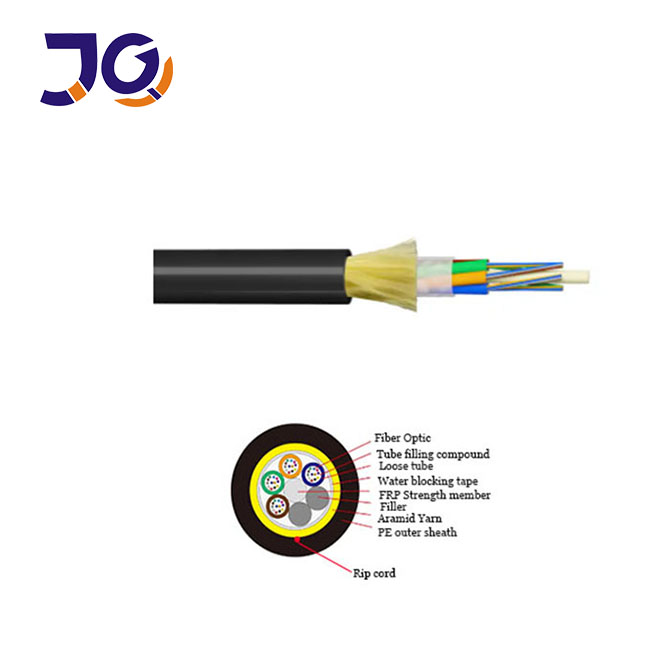

All Dielectric Self Supporting (ADSs) optical cables provide fast
and economical transmission channels for power communication
systems due to their unique structure, good insulation and high
temperature resistance, as well as high tensile strength. Generally
speaking, ADSS optical cables are cheaper than OPGW (Optical Fiber
Composite Ground Wire) cables in many applications, and they are
easier to install. It is desirable to use power lines or nearby
towers to erect ADSS optical cables, and in some places it is even
necessary to use ADSS optical cables. The main uses of ADSS optical
cables are:
(1) Use it as the lead-in and lead-out optical cable of the OPGW
system relay station. Based on its safety properties, it can solve
the power isolation problem well when it is introduced and led out
of the relay station.
(2) Use it as the transmission optical cable of the optical fiber
communication system in the high-voltage (110kV-220kV) power grid.
In particular, many places have conveniently used it when
renovating old communication lines.
(3) Use it in optical fiber communication systems in 6kV~35kV~180kV
distribution networks
Application:
short, medium and long span distances overhead installation
Fiber Optic G652D:
Item | Unit | Specification | |
Fiber Type | G.652D | ||
Mode field diameter | 1310nm | mm | 9.2±0.4 |
1550nm | mm | 10.4±0.8 | |
Cladding diameter | mm | 125.0±1 | |
Cladding non-circularity | % | ≤1.0 | |
Core/cladding concentricity error | mm | ≤0.5 | |
Coating diameter | mm | 245±5 | |
Coating non-Circularity | % | ≤6.0 | |
Coating/cladding concentricity error | mm | ≤12.0 | |
Cable cut-off wavelength | nm | ≤1260 | |
Attenuation Coefficient | 1310nm | dB/km | ≤0.35 |
1550nm | dB/km | ≤0.21 | |
Proof stress level | kpsi | ≥100 |
All of our fiber optic have to be tested before making and after cable done
Fiber optic cable with about 25- 30 years life expectancy,we test fiber optic twice before and after cable to make sure quality
GOOD after-sales service
Packing&Shipping:
Our ADSS Fiber Optic Cable can be conveniently shipped to your warehouse using a variety of transportation methods.such as by sea/road/railway or air
Company Profile:
1.Located in Guangzhou China
Exhibition:Cairo ICT
Certification:
FAQ:
Q1.What is your terms of packing?
A: Generally, we pack our goods in drum with pallet for
export.2KM/3KM/4KM/5KM of one drum or as per your requirements
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the
photos of the products and packages
before you pay the balance.
Q3. What is your terms of Trade?
A: EXW, FOB, CFR, CIF
Q4. How about your delivery time?
A: Generally, it will takes about 5-7days after receiving your
initial. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you provide OEM or ODM
A: Yes
Q6. What is your sample policy?
A: We provide FREE sample if we have them in stock
Q7. Do you test all your goods before delivery?
A: Yes, all of cables have to be tested before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our
customers benefit ;
2. We respect every customer as our friend and we sincerely do
business and make friends with them, no matter where they come
from.
