GYTC8S Figure 12 24 Stranded Loose Tube Messenger Wire Aerial
outdoor Fiber Optic cable 2KM/Price
Self-Supporting Aerial 48 Core GYTC8S Outdoor Fiber Optical Communication Cable( 12 Core /loose tube )
figure-8 optical fiber cable with metallic central strength member
of steel wire/strand and moisture barrier inner sheath
incorporating steel messenger wire suitable for overhead
installation as pole-to-pole or pole-topremises.Tubes contain
optical single-mode or multimode fibers color coded as per the
color coding scheme.

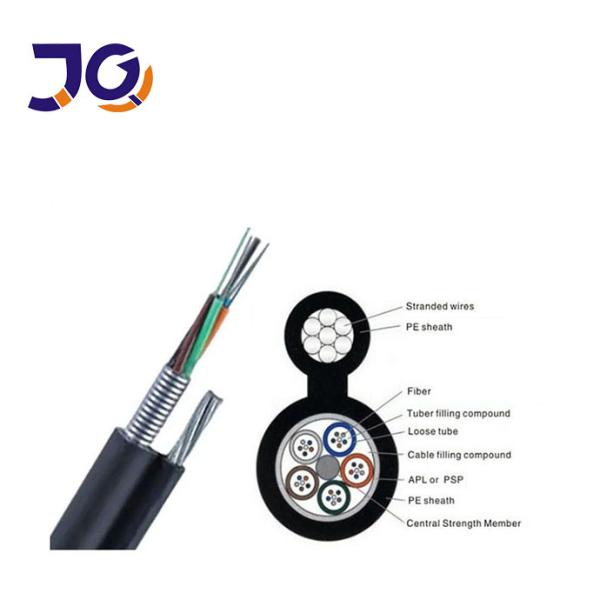

Introduce some detail to you :(Cross -section)
We Can customize :Such as add color bar
Structure:
Figure 8 non armoured fiber cable consists of :
1.Stranded loose tube
2.Steel wire strength member
3.Core filler compound
4.Fillers
5.Phosphating or Galvanized steel wire
6.PE sheath
Standards and Certificate:
Fiber optical cable complies with Standard YD/T 769-2003,IEC60794-1
Certificate: ISO9001/FC/CE/ROHS
Characteristics
1 Good mechanical and temperature performance
2.High strength loose tube that is hydrolysis resistant
3.Special tube filling compound ensure a critical protection of
fiber
Optical Characteristics:
| G.652D | 50/125μm | 62.5/125μm |
| Attenuation (+20℃) | @850nm | | ≤3.0 dB/km | ≤3.0 dB/km |
| @1300nm | | ≤1.0 dB/km | ≤1.0 dB/km |
| @1310nm | ≤0.36 dB/km | | |
| @1550nm | ≤0.22 dB/km | | |
| Bandwidth (Class A) | @850nm | | ≥500 MHz·km | ≥200 MHz·km |
| @1300nm | | ≥1000 MHz·km | ≥600 MHz·km |
| Numerical Aperture | | 0.200±0.015NA | 0.275±0.015NA |
| Cable Cut-off Wavelength λcc | ≤1260nm | | |
Printing :
1: we support OEM
2: And print your company name on drum or jacket
3: Customize Jacket Color .
Our factory :
Delivery :
FAQ:
1. Are you the real manufacturer?
Yes, we are factory in guangzhou china, welcome to visit us!
2. what is your minimum quantity?
1KM. We support new project of our customers, trial order is
available
3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express
freight.
4.What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.
5.Delivery time?
Generally 3-7 working days, also it is according to qty.
6.Can you supply customized products and logo?
Yes, we supply OEM&ODM service, pls feel free to contact.
