The ""All Dielectric Self-Supporting (ADSS)"" cables are designed
for aerial self-supporting applications at short, medium and long
span distances. ADSS cables offer a rapid and economical means for
deploying optical fiber cables along existing aerial rights-of-way

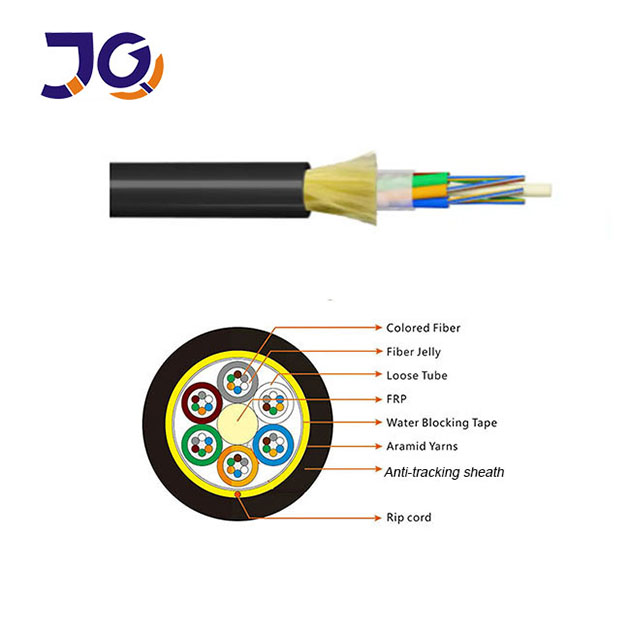

Structure and Technical Specifications ADSS-SJ(50-150M)
Ref. Outer
Diameter
(mm) | Ref. Weight
(kg/km) | Rec. Daily Max.
Working Tension (kN) | Max Allowable
Working Tension
(kN) | Break Strength (kN) | Strength Member CSA (mm2) | Modulus of
Elasticity
CSA (kN/mm2) | Heat Expansion Coefficient (x10- 6/K) | Suitable Span
Meter |
| PE Jacket | AT Jacket | A | B | C | D |
| 11 | 110 | 120 | 1.0 | 2.5 | 8 | 3.0 | 6.6 | 2.1 | 120 | 80 | 100 | 80 |
| 11.5 | 115 | 125 | 1.5 | 4 | 10 | 4.5 | 7.3 | 1.8 | 180 | 120 | 150 | 120 |
| 12 | 120 | 130 | 2.5 | 6 | 15 | 7.5 | 8.3 | 1.5 | 250 | 150 | 290 | 150
|
Structure and Technical Specifications ADSS-DJ(50-750M)
Ref. Outer
Diameter
(mm) | Ref. Weight
(kg/km) | Rec. Daily Max.
Working Tension (kN) | Max Allowable
Working Tension
(kN) | Break Strength (kN) | Strength Member CSA (mm2) | Modulus of
Elasticity
CSA (kN/mm2) | Heat Expansion Coefficient (x10- 6/K) | Suitable Span
Meter |
| PE Jacket | AT Jacket | A | B | C | D |
| 12.5 | 125 | 136 | 1.5 | 4 | 10 | 4.6 | 7.6 | 1.8 | 160 | 100 | 140 | 100 |
| 13.0 | 132 | 142 | 2.25 | 6 | 15 | 7.6 | 8.3 | 1.5 | 230 | 150 | 200 | 150 |
| 13.3 | 137 | 148 | 3.0 | 8 | 20 | 10.35 | 9.45 | 1.3 | 300 | 200 | 290 | 200 |
| 13.6 | 145 | 156 | 3.6 | 10 | 24 | 13.8 | 10.8 | 1.2 | 370 | 250 | 350 | 250 |
| 13.8 | 147 | 159 | 4.5 | 12 | 30 | 14.3 | 11.8 | 1.0 | 420 | 280 | 400 | 280 |
| 14.5 | 164 | 177 | 5.4 | 15 | 36 | 18.4 | 13.6 | 0.9 | 480 | 320 | 460 | 320 |
| 14.9 | 171 | 185 | 6.75 | 18 | 45 | 22.0 | 16.4 | 0.6 | 570 | 380 | 550 | 380 |
| 15.1 | 179 | 193 | 7.95 | 22 | 53 | 26.4 | 18.0 | 0.3 | 670 | 460 | 650 | 460 |
| 15.5 | 190 | 204 | 9.0 | 26 | 60 | 32.2 | 19.1 | 0.1 | 750 | 530 | 750 | 510
|

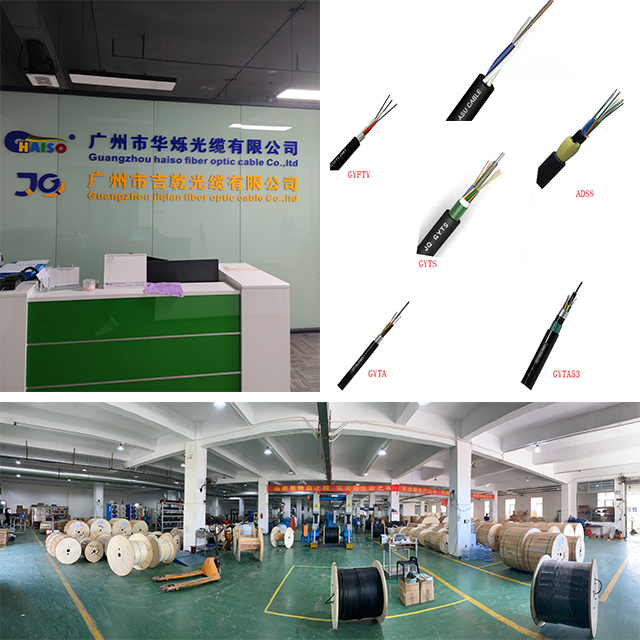

Company profile:
1.Located in Guangzhou China
2.12 years experiance of producing fiber optic cable
3.Exporting fiber optic cable to all over the world
4.CE/ROSH/FCC/ISO9001 Certifications
Exhibition:
FAQ:
1,Q:Are you a factory or trade company?
A:We are a factory
2,Q:What is the MOQ?
A:The MOQ of Fiber Optic cable is 1km.
3.Q:Which brand of fiber do you use?
A:Corning,YOFC,Fiberhome,etc
4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our
customers as we know business is always from small order.
5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It
depends on the order quantity.
6.Can you supply customized products and logo?
A:Yes. We supply OEM service.
7.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% in advance and 70% before
shipment.
