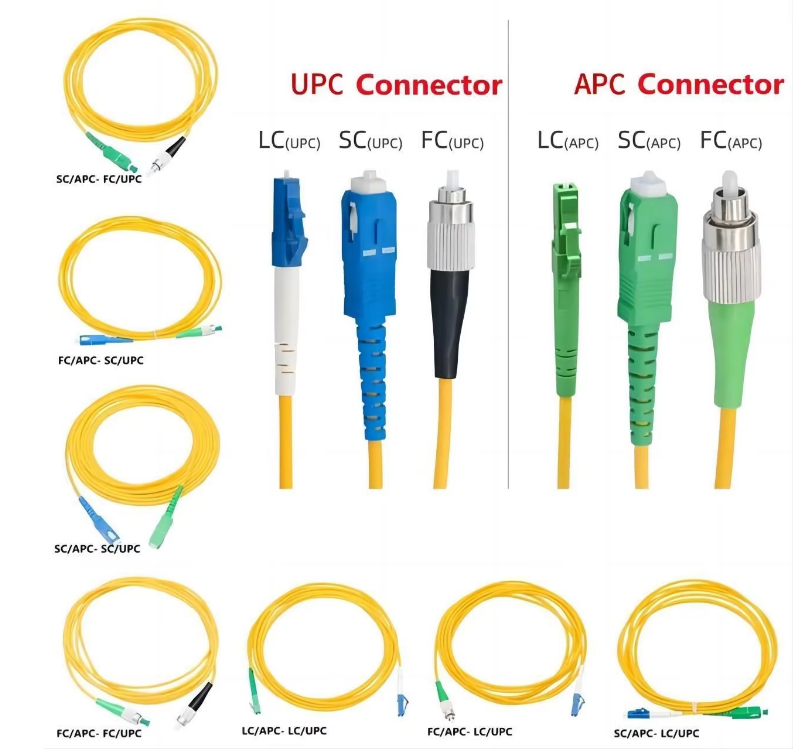

SC/APC a SC/UPC 1m 2m 3m Fiber Patch Cord
Product Description
9/125 Micron Simplex 900 Micron Buffered Fiber Patch Cord, Pass all TIA/EIA-568-B.3 performance requirements, 100 percent factory
inspected end face geometry in compliance with Telcordia GR-326-CORE, Issue 3, UPC polished, factory terminated and 100
percenttested for insertion loss and return loss, insertion loss and return loss data recorded for every single-mode patch cord,
Lifetime traceability of test data to a Quality Control number on each patch cord, highest quality fiber optic cable with
tight-buffered coatiing on each optical fiber.

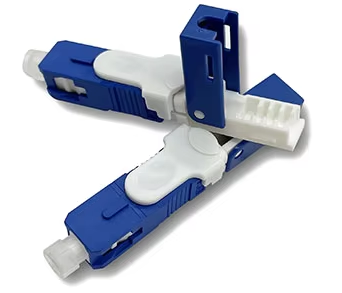

Fast Connector
Humanized design Applicable
to a variety of leather wire specifications
reusable Long use time
Reusable
Adaptable
Can be reused many times.
Cold joint
operation method
Feature
Low Insertion loss
High return loss
Good Repeatability
Good Interchange
Excellent Environmental Adaptability
Optical Characteristics
| Singemode(UPC) | Singemode(APC) | Multimode |
| Insertion loss | ≤ 0.3db | ≤ 0.3db | ≤ 0.25db |
| Return loss | ≥45db | ≥50db | ≥30db |
| Durability | ≤ 0.3db typical change, 1000 times mating |
| Operating Temperature | -45 to +85 degree |
| Ferrule Hole Sizes | 125.0+1/-0um, Concertricity:≤1.0um | 125.0+1/-0um, Concertricity:≤0.5um | 127.0um, Concertricity: ≤3.0um |
| 125.5+1/-0um, Concertricity:≤1.0um | 125.5+1/-0um, Concertricity:≤0.5um | |
| 126.0+1/-0um, Concertricity:≤1.0um | 126.0+1/-0um, Concertricity:≤0.5um | |
Technical Data
FTTH drop cable patch cord |
| item | Technical Parameters |
| Insertion loss | SM ≤ 0.2dB |
| Return loss | PC>45dB UPC>50dB APC ≥65dB |
| Connector plug | More than 1000 times |
| Temperature range | 40°C~+80°C |
| Tensile strengtr | 45Kg (Except Φ0.9SM fiber) |
| Insertion losss | <0.25dB (1310nm&1550nm) |
| Vibration test | < 0.1dB (5-50Hz,1.5SM amplitude) |
Application
Communication rooms
FTTH (Fiber to The Home)
LAN (Local Area Network)
FOS(fiber optic sensor)
Fiber Optic Communication System
Optical fiber connected and transmitted equipment
Other Products
Packing&Delivery
Packing:100/Pcs in one Carton box or OEM.
Shipment:by Sea,by Air,by Express:DHL/UPS/Fedex/EMS/TNT etc
Deliverty: 3-5 days after payment dowm,According to ur order quantity.
