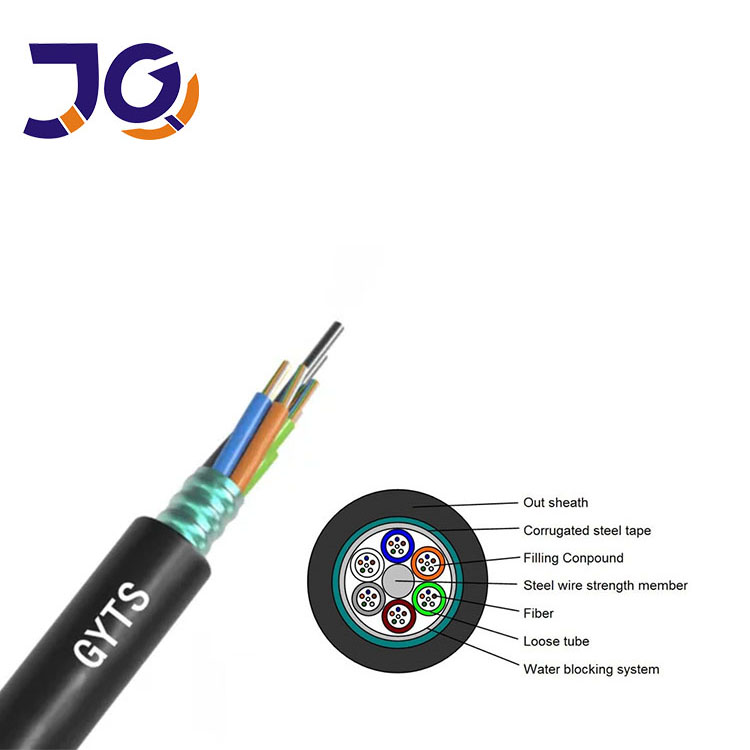

GYTS armored fiber optical cable for outdoor underground
installation with metal strengthening member, loose tube stranded
and filled, steel-polyethylene bonded sheathed outdoor optical
fiber cable for communication. The structure of the optical cable
is to sheath single-mode or multi-mode optical fiber into the inner
filling made of high modulus plastic Waterproof compound in loose
tube. The center of the cable core is a metal reinforced core. For
some fiber optic cable type, the metal reinforced core is also
extruded with a layer of polyethylene.
Features:
●Precise control of the excess length of the optical fiber ensures
that the optical cable has good tensile performance and temperature
characteristics
●PBT loose tube material has good hydrolysis resistance, and the
tube is filled with special grease to protect the optical fiber
●Steel-polyethylene sheath has excellent compressive performance
●Smooth outer sheath enables the optical cable to have a smaller
coefficient of friction during installation
●PE sheath has good resistance to solar radiation
●The following measures are adopted to ensure the waterproof
performance of the optical cable: the loose tube is filled with
special waterproof compounds; the cable core is completely filled
with a steel-plastic composite with a moisture-proof layer.
G652D Fiber Optic:
| Item | Unit | Specification |
| Fiber Type | G.652D |
| Mode field diameter | 1310nm | mm | 9.2±0.4 |
| 1550nm | mm | 10.4±0.8 |
| Cladding diameter | mm | 125.0±1 |
| Cladding non-circularity | % | ≤1.0 |
| Core/cladding concentricity error | mm | ≤0.5 |
| Coating diameter | mm | 245±5 |
| Coating non-Circularity | % | ≤6.0 |
| Coating/cladding concentricity error | mm | ≤12.0 |
| Cable cut-off wavelength | nm | ≤1260 |
| Attenuation Coefficient | 1310nm | dB/km | ≤0.35 |
| 1550nm | dB/km | ≤0.21 |
| Proof stress level | kpsi | ≥100 |
Mechanical and Environmental Characteristics
| Item | Unit | Specifications |
| Tension(Long Term) | N | 800 |
| Tension(Short Term) | N | 2000 |
| Crush(Long Term) | N/10cm | 500 |
| Crush(Short Term) | N/10cm | 1500 |
| Min. Bend Radius(Dynamic) | mm | 20D |
| Min.Bend Radius(Static) | mm | 10D |
| Installation Temperature | ℃ | -40～+60 |
| Operating Temperature | ℃ | -40～+70 |
| Storage Temperature | ℃ | -40～+70 |
Repeating bending | Load:250N;number of cycles:30 No obvious addition attenuation, no fiber break and no cable damage. |
Torsion | Load:250N; number of cycles:10; twist angle:±90° No obvious addition attenuation, no fiber break and no cable damage. |
Impact | Impact energy:450g×1m; radius of hammer head:12.5mm; number of impact: 5 No obvious addition attenuation, no fiber break
and no cable damage. |
