    GYFTC8S Figure 8 Armored Fiber Optic Cable Steel Messenger Self Supporting FRP

    Ask Lasest Price
    Brand Name : JQ/OEM
    Model Number : GYTC8S/GYFTC8S/GYXTC8A
    Certification : ISO9001 ROHS CE-EMC FCC SDOC
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 300km per days
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    GYFTC8S Figure 8 Armored Fiber Optic Cable Steel Messenger Self Supporting FRP


    self-supporting FRP strength armoured GYFTC8S Figure 8 Fiber Optic Cable


    description of Figure 8 fiber cable

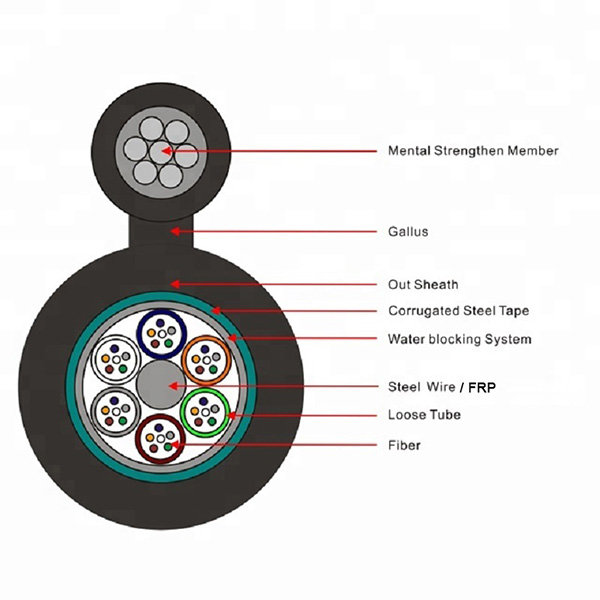

    The Figure 8 fiber optic cable, including models such as GYFTC8S, GYTC8S, GYXTC8S, and GYXTC8Y, is a self-supporting outdoor cable widely used in aerial installations. It offers strong resistance to moisture and external pressure. The cable's metallic strength member is composed of stranded steel wires, while the support portion is encased in a polyethylene (PE) jacket, forming a characteristic figure-8 shape.


    Features


    1. The stranded wire design provides excellent tensile strength, supporting self-bearing installation and lowering deployment costs.

    2. Exhibits strong durability under mechanical stress and temperature fluctuations.

    3. Utilizes high-strength loose tubes with resistance to hydrolysis for long-term reliability.

    4. Special gel within the tubes offers vital protection for optical fibers.

    5. Multiple design strategies are applied to ensure water-blocking performance:

      • Central strength member made of steel wire or FRP

      • Water-resistant filling compound inside loose tubes

      • Full core filling throughout the cable

      • PSP layer added to enhance moisture resistance

    Optical Characteristics


    ItemsUnitSpecification
    G652D
    Mode Field Diameter1310nmum9.2±0.4
    1550nmum10.4±0.5
    Cladding Diameterum124.8±0.7
    Cladding Non-Circularity%0.7
    Core-Cladding Concentricity Errorum0.5
    Coating Diameterum245±5
    Coating Non-Circularity%6.0
    Cladding-Coating Concentricity Errorum12
    Cable Cutoff Wavelengthnmacc≤1260
    Attenuation(max.)1310nmdB/km0.36
    1550nmdBkm0.22

    Technical Parameters

    Fiber ModelG.652D
    Design(Strength Member+Tube&Filler)1+5
    CentralStrengthMemberMaterialSteel Wire
    Diameter(+0.05)mm1.5
    LooseTubeMaterialPBT
    Diameter(+0.06)mm2.0
    Thickness(+0.03)mm0.32
    TheMax.CoreNO./Tube12
    Filler RopeMaterialPE
    ColorWhite
    Diameter(+0.06)mm2.1
    Strand Strength MemberMaterialstranded steel wire
    Typeφ1.0mm x7
    Armor layerMaterialSteel Tape
    OuterSheath①MaterialPE
    Thickness(+0.03)mm1.
    OuterSheath①MaterialMDPE
    Thickness(40.03)mm1.8
    CableDiameter(土0.2)mm9.0*16.0(nominal)
    CableWeight(+10)kg/km160(nominal)
    Tensile /N (short term)5000
    Tensile /N (long term)1500
    Crush/N ( short term)1000
    Crush /N (short term)300
    Attenuation1310nm0.35dB/KM
    1550nm0.22dB/KM
    Min.bendingradiusWithout Tension10.0*Cableφ
    Under Maximum Tension20.0xCableφ

    Picture Show


    Packing

    • Standard Cable Wooden Drum

    • Standard reel length: 2/3km/reel, other length is also available


    FAQ

    1. Are you a direct manufacturer?
    Yes, we are a genuine manufacturer with over 10 years of industry experience.

    2. Do you support small quantity orders?
    Absolutely. We welcome small orders, especially for new projects, as we understand every business starts with a first step.

    3. How long is your product warranty?
    We offer a 25-year warranty for our fiber optic cables.

    4. What is your typical lead time?
    Generally, orders are processed and shipped within 3 to 5 working days.

    5. What is your yearly production capacity?

    • Outdoor/Indoor Fiber Optic Cable: 6,000,000 kilometers annually

    • FTTH/FTTX/FTTA Cable: 6,000,000 kilometers per year

    • Patch Cords and Pigtails: 12,400,000 pieces annually

    6. Do you offer custom products and branding?
    Yes, we provide OEM and ODM services. Just send us your design or requirements, and we’ll take care of the rest.
