12 Core Outdoor Single Mode SM 9/125 G652D ADSS 12 Fiber Optic
Cable ADSS
What is ADSS Cable?
All-Dielectric Self-Supporting (ADSS) cable is a fully non-metallic
fiber optic cable designed with integrated tensile strength
elements, typically aramid yarns or stranded glass reinforced
plastic rods, arranged within a circular structure. The optical
fibers are generally housed in polymer loose tubes, which are then
protected by the overall cable construction. ADSS cables are ideal
for installation on distribution and transmission lines, even for
live-line conditions. As the name suggests, no separate support or
messenger wire is needed, enabling single-pass installation and
making it a cost-effective and straightforward solution for
building fiber optic networks.
Advantages
ADSS cables offer several benefits:
Lightweight and small diameter reduce load on towers and poles.
Durable construction protects against moisture and chemicals.
Suitable for various outdoor overhead applications.
Provides reliable transmission over long distances.
Offers a service life of up to 30 years after installation.
Applications
Used by power utilities, telecom providers, railways, and private
network operators.
Designed for mounting on distribution and transmission lines.
Can be installed near conductors.
Ideal for underbuild applications requiring minimal service
interruptions.
Preferred for telecom networks needing fast, cost-effective
deployment.
Suitable for FTTX projects, including FTTH (Fiber to the Home).
Standards
ADSS cables comply with IEEE P1222 and IEC 60794-1 standards.
Structure and Technical Specifications
1. ADSS single jacket
| fiber count | structure | fiber per tube | losse tube diameter (MM) | FRP/pad diameter (mm) | Thickness of outer jacket(mm) | Ref. Outer
Diameter
(mm) | Ref. Weight
(kg/km) |
| PE Jacket | AT Jacket |
| 4 | 1+5 | 4 | 1.95 | 2.0/2.0 | 1.7±0.1 | 9.8 | 80 | 90 |
| 6 | 1+5 | 6 | 1.95 | 2.0/2.0 | 1.7±0.1 | 9.8 | 80 | 90 |
| 8 | 1+5 | 4 | 1.95 | 2.0/2.0 | 1.7±0.1 | 9.8 | 80 | 90 |
| 12 | 1+5 | 6 | 1.95 | 2.0/2.0 | 1.7±0.1 | 9.8 | 80 | 90 |
| 24 | 1+5 | 6 | 2.0 | 2.0/2.0 | 1.7±0.1 | 9.8 | 85 | 95 |
| 48 | 1+5 | 12 | 2.0 | 2.0/2.0 | 1.7±0.1 | 10.0 | 88 | 98 |
| 72 | 1+6 | 12 | 2.2 | 2.0/2.0 | 1.7±0.1 | 10.5 | 98 | 108 |
| 96 | 1+8 | 12 | 2.2 | 2.0/3.4 | 1.7±0.1 | 12.0 | 122 | 135 |
| 144 | 1+12 | 12 | 2.2 | 3.0/7.2 | 1.7±0.1 | 15.2 | 176 | 189 |
Tips: all the specifications in the abolve table is approximate
data, for more detals specifications,
pls contact our salers.
2. ADSS double jacket
| fiber count | structure | fiber per tube | losse tube diameter (MM) | FRP/pad diameter (mm) | Thickness of outer jacket(mm) | Ref. Outer
Diameter
(mm) | Ref. Weight
(kg/km) |
| PE Jacket | AT Jacket |
| 4 | 1+5 | 4 | 1.9 | 2.0/2.0 | 1.7±0.1 | 12.0 | 125 | 135 |
| 6 | 1+5 | 6 | 1.9 | 2.0/2.0 | 1.7±0.1 | 12.0 | 125 | 135 |
| 8 | 1+5 | 4 | 1.9 | 2.0/2.0 | 1.7±0.1 | 12.0 | 125 | 135 |
| 12 | 1+5 | 6 | 1.9 | 2.0/2.0 | 1.7±0.1 | 12.0 | 125 | 135 |
| 24 | 1+5 | 6 | 2.0 | 2.0/2.0 | 1.7±0.1 | 12.0 | 128 | 138 |
| 48 | 1+5 | 12 | 2.0 | 2.0/2.0 | 1.7±0.1 | 12.5 | 130 | 140 |
| 72 | 1+6 | 12 | 2.2 | 2.0/2.0 | 1.7±0.1 | 13.2 | 145 | 155 |
| 96 | 1+8 | 12 | 2.2 | 2.0/3.4 | 1.7±0.1 | 14.5 | 185 | 195 |
| 144 | 1+12 | 12 | 2.2 | 3.0/7.2 | 1.7±0.1 | 16.5 | 212 | 228 |
Tips: all the specifications in the abolve table is approximate
data, for more detals specifications,
pls contact our salers.
Fiber type | Attenuation (+20℃) | Bandwidth | Optical cable cut-off wavelength |
|---|
@850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm |
|---|
| G.652 | --- | --- | ≤0.36dB/km | ≤0.22dB/km | --- | --- | ≤1260nm |
| G.655 | --- | --- | ≤0.40dB/km | ≤0.23dB/km | --- | --- | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | --- | --- | ≥500MHz·km | ≥500MHz·km | --- |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | --- | --- | ≥200MHz·km | ≥500MHz·km | ---
|
Details picture shows
single jacket ADSS fiber cable

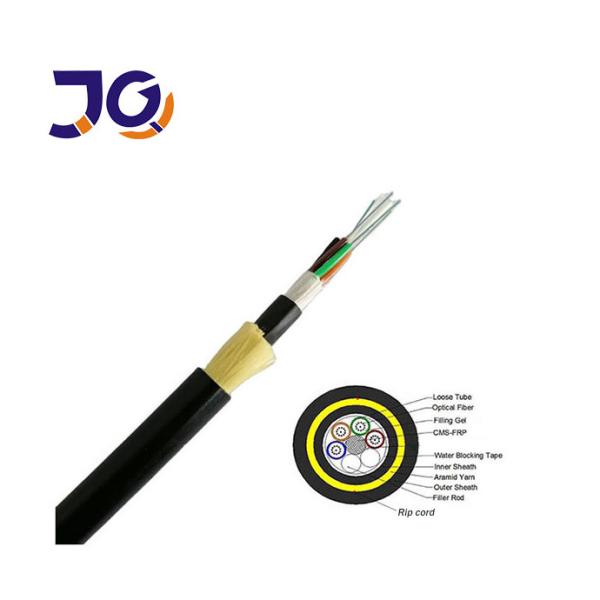

double jacket ADSS fiber optic cable
Packing:
FAQ
1. Are you a trading company or a manufacturer?
We are a manufacturer with 10 years of experience, specializing in
the R&D and production of fiber optic cables, drop cables,
patch cords, and related products. Our factory is located in
Guangzhou—welcome to visit us!
2. How is the quality guaranteed?
Each fiber is tested before delivery to ensure quality. After
confirming the price, you can also request free samples for
evaluation.
3. Do you accept small orders?
Yes, we support small orders and new projects, as we believe every
big business starts from a small order.
4. What is the delivery time?
Typically, 3–7 working days depending on the quantity. We always
arrange shipment as soon as possible after receiving payment.
5. Do you provide OEM service?
Yes, we offer OEM services and can print your logo on the products.
We are open to any of your ideas.
