ADSS Fiber Optic Cable 96 Core PE Sheath 600m Span

Ask Lasest Price
Brand Name :	Jiqian
Model Number :	ADSS-96B1-600m
Certification :	ISO9001/ROHS/CE/FCC
Payment Terms :	L/C, T/T, Western Union
Delivery Time :	5-7 days,it depends on order quantity

Add to Cart

Product Details
Company Profile

ADSS Fiber Optic Cable 96 Core PE Sheath 600m Span

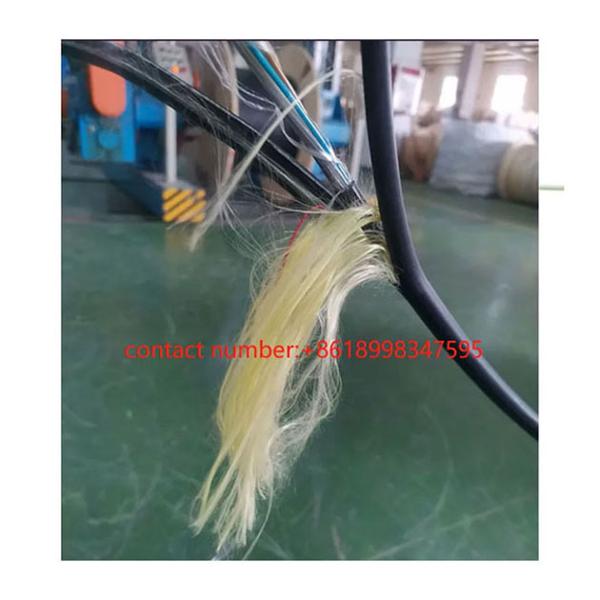

Jiqian Fiber Optic Cable ADSS 96 Core Span 600m Double Jacket

For outside plant aerial and duct applications
A separate messenger support wire hanging system is not required
Greatly reducing installation time
Improving upfront and maintenance labor costs

G652D Parameter:

Item		Unit	Specification
Fiber Type			G.652D
Fiber Brand			YOFC
Mode field diameter	1310nm	mm	9.2±0.4
Mode field diameter	1550nm	mm	10.4±0.8
Cladding diameter		mm	125.0±1
Cladding non-circularity		%	≤1.0
Core/cladding concentricity error		mm	≤0.5
Coating diameter		mm	245±5
Coating non-Circularity		%	≤6.0
Coating/cladding concentricity error		mm	≤12.0
Cable cut-off wavelength		nm	≤1260
Attenuation Coefficient	1310nm	dB/km	≤0.35
Attenuation Coefficient	1550nm	dB/km	≤0.21
Proof stress level		kpsi	≥100

Span(m)	100	200	600
Rated tensile strength(RTS)	7.1	10.8kn	37.2kn
Allows the use of tension(MAT)	2.8 kn	4.3kn	14.9kn
The compressive strength	Long time: 1100 n/100mm	Long time: 1100 n/100mm	Long time: 1100 n/100mm
The compressive strength	Short time: 2200 n/100mm	Short time: 2200 n/100mm	Short time: 2200 n/100mm

Cable accessories:

Packaging & ShIpping

Company profile:

1.Located in Guangzhou China

2.12 years experiance of producing fiber optic cable
3.CE/ROSH/FCC/ISO9001 Certifications
4.Exporting fiber optic cable to all over the world

Exhibition:

FAQ:

Q1.What is your terms of packing?
A: Generally, we pack our goods in drum with pallet for export.2KM/3KM/4KM/5KM of one drum or as per your requirements

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of Trade?
A: EXW, FOB, CFR, CIF

Q4. How about your delivery time?
A: Generally, it will take 5 to 7days after receiving your initial. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you provide OEM or ODM
A: Yes

Q6. What is your sample policy?
A: We provide FREE sample if we have them in stock

Q7. Do you test all your goods before delivery?
A: Yes, all of cables have to be tested before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
