24 48 96 Core Air Blown Fiber Micro Cable Fiber Optical Cable GCYFY

Ask Lasest Price
Brand Name :	JQ/OEM
Model Number :	GCYFY
Certification :	ISO9001 ROHS CE-EMC FCC SDOC
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	30km per day
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

24 48 96 Core Air Blown Fiber Micro Cable Fiber Optical Cable GCYFY

24 48 96 Core GCYFY Air Blown Fiber Micro Cable

Product Description

1. Model: GCYFY

2. Cable Cross-section

24 48 96 Core Air Blown Fiber Micro Cable Fiber Optical Cable GCYFY

Optical Characteristics

Item	Specification
Fiber type	G.652D
Attenuation
@ 1310 nm	≤0.36 dB/km
@ 1383 nm	≤0.35 dB/km
@ 1550 nm	≤0.22 dB/km
@ 1625 nm	≤ 0.30 dB/km
Cable Cut-off Wavelength(λcc)	≤1260 nm
Zero Dispersion Wavelength(nm)	1300 ~ 1324 nm
Zero Dispersion Slope	≤0.092 ps/(nm2.km)
Chromatic Dispersion
@ 1288 ~ 1339 nm	≤3.5 ps/(nm. km)
@ 1550 nm	≤18 ps/(nm. km)
@ 1625 nm	≤22 ps/(nm. km)
PMDQ	≤0.2 ps/km1/2
Mode Field Diameter @ 1310 nm	9.2±0.4 um
Core Concentricity Error	≤0.6 um
Cladding Diameter	125.0±0.7 um
Cladding Non-circularity	≤1.0%
Coating Diameter	245±10 um
Proof Test	100 kpsi (=0.69 Gpa), 1%

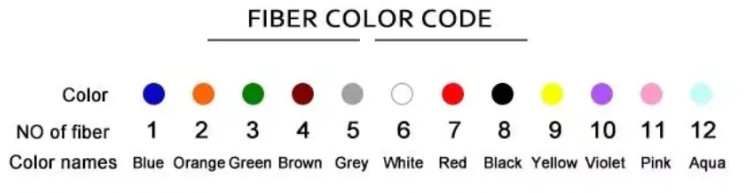

Fiber & Tube Color

24 48 96 Core Air Blown Fiber Micro Cable Fiber Optical Cable GCYFY

Features

GCYFY loose-shell twisted air-blown micro-cable adopts non-metallic reinforcement and no armor structure, which can be hauled or air-blown micro-pipe in the outer protective tube that has been laid, and then air-blown The laying method breaks through the limitation of the existing pipeline cable laying technology, improves the utilization efficiency of the pipeline, and is easy to expand

Environmental Characteristics: • Transport/storage temperature: -40℃ to +70℃

Cable Parameters

Cores

Cores/tube

FRP diameter (mm)

Sheath thickness (mm)

Approx. overall diameter

(mm)

Approx.

weight (kg/km)

1.5

0.5±0.1

5.6

1.5

0.5±0.1

5.6

48	12	1.5	0.5±0.1	5.6	24
72	12	1.5	0.5±0.1	5.6	24
96	12	2.5	0.5±0.1	6.6	38

Applications

The cable can be used as the drop cable of feeder segments in FTTH networks and can be laid by air blowing to connect the branch point with the access point for subscribers. The cable is also applicable in backbone networks , metropolitan area networks and access networks

24 48 96 Core Air Blown Fiber Micro Cable Fiber Optical Cable GCYFY

Delivery Length

• Standard length: 4,000m; other lengths are also available.

24 48 96 Core Air Blown Fiber Micro Cable Fiber Optical Cable GCYFY
