Brand Name : | JQ |
Model Number : | GYTA |
Certification : | CE/ISO9001 |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 8000 kilometers per month |
Delivery Time : | 2-5days |
GYTA/S APL PSP Armored Stranded Loose Tube Optical Fiber Cable

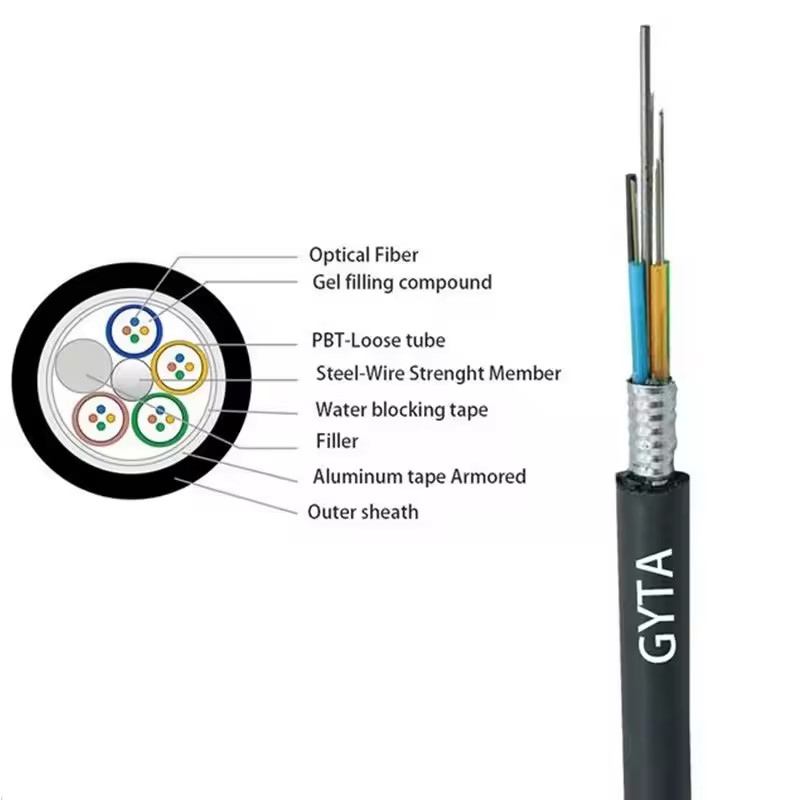

GYTA/S APL PSP Armored Stranded Loose Tube Optical Fiber Cable,The
bending insensitive optical fibres are housed in loose tubes that
are made of high-modulus plastic and filled with tube filling
compound. The loose tubes with smaller size are stranded to form a
cable core. The core is armored with laminated aluminum tape. Then
a PE outer sheath is extruded. This structure has a smaller size to
enhance installation density of fibres in ducts.
The Main Features Of GYTA/S Fiber Cable
1.Accurate process control ensuring good mechanical and temperature
performances,
2.The material of loose tubes with good hydrolysis resistance and
relatively high strength Tube filling compound providing the key
protection for fibres,
3.Using small-sized B6a2 fibres with good micro and macro bending
performance,
4.Comply with IEC60794-3-11(2007): Optical fibre cables- Part 3-11,
5.Water resistance of optical cable is ensured by the following
measures: Special water-blocking compound filled in loose tubes,
6.Laminated aluminum tape armorCable filling compound ensuring
longitudinal water resistance.
Application:
•Interbuilding voice or data communication backbone.
•Installed in duct, underground conduit.
Specification:
item | value |
Model Number | GYTA |
Type | Outdoor Fiber Optic Cable |
Place of Origin | Guangdong,China |
Brand Name | jiqian |
Number of Conductors | ≥ 10 |
Fiber count | 2-288 Cores |
Fiber Type | G652D Single mode or as your request |
Loose tube material | PBT |
Central strength member | steel wire |
Armoured | Al tape |
Outer Sheath | PE |
Cable Structure | Multi-Loose Tube Aluminum/Steel Tape armor |
Color | Black or as your need |
Package | Fumigation free wooden drum |
Installation | aerial, in duct |
Certification | CE/ROHS/ISO9001 /ANATEL |
OEM | Available |
Structure and Technical Specifications:
Fiber | Nominal | Nominal | Max Fiber | Max No. | Allowable Tensile | Allowable Crush | ||
Count | Diameter | Weight | Per Tube | of(Tubes+ | Load(N) | Resistance(N/100mm) | ||
(mm) | (kg/km) | fillers) | Short Term | Long Term | Short Term | Long Term | ||
2~36 | 10.3 | 109 | 6 | 6 | 1500 | 600 | 1000 | 300 |
38~72 | 11.5 | 145 | 12 | 6 | 1500 | 600 | 1000 | 300 |
74~96 | 13.5 | 175 | 12 | 8 | 1500 | 600 | 1000 | 300 |
98~120 | 14.8 | 209 | 12 | 10 | 1700 | 600 | 1000 | 300 |
122~144 | 16.6 | 249 | 12 | 12 | 2000 | 600 | 1000 | 300 |
146~216 | 16.7 | 254 | 12 | 18(2 layers) | 2000 | 600 | 1000 | 300 |
218~288 | 19 | 325 | 12 | 24(2 layers) | 2500 | 600 | 1000 | 300 |
Delivery:
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL
,UPS,TNT.....)
Packaging Details:
Wooden roll, 1000m/reel, 2000m/reel, 3000m/reel, customer's
requirements are also welcomed.
WHY CHOOSE US:
Certification:
FAQ:
1. Are you the real manufacturer?
Yes, we are factory in Guangzhou china, welcome to visit us!
2. what is your minimum quantity?
1KM. We support new project of our customers, trial order is
available
3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express
freight.
4.What about Payment?
T/T, L/C, Western Union and Paypal are acceptable.
5.Delivery time?
Generally 3-7 working days, also it is according to qty.
6.Can you supply customized products and logo?
Yes, we supply OEM&ODM service, pls feel free to contact.
![]() |
