12 24 Core Single Armor Double Jackets Flame-Retardant MGTSV Mining Fiber Optic Cable

MGTSV is suitable for coal, gold, iron ore and other mines. It has the flame retardant, rodent resistance property, so it is a
good choice for mines. Especially for the accident-prone land mines, to ensure smooth communication, reduce losses when the accident happens.

The steel armor helps to protect the cable from rat bite, ensures bullet proof ability. Double jackets structure have nice
properties of moisture resistance and crush resistance. Besides, the out sheath is flame retardant. Loose tube material itself has
good hydrolysis resistance. Waterproof performance ensures the safety of underground mine.



Fiber G652D:

Item		Unit	Specification
Fiber Type			G.652D
Mode field diameter	1310nm	μm	9.2±0.4
	1550nm	μm	10.4±0.8
Cladding diameter		μm	125.0±1
Cladding non-circularity		%	£1.0
Core/cladding concentricity error		μm	£0.5
Coating diameter		μm	245±5
Coating non-Circularity		%	£6.0
Coating/cladding concentricity error		μm	£12.0
Cable cut-off wavelength		nm	£1260
Attenuation Coefficient	1310nm	dB/km	£0.36
	1550nm	dB/km	£0.22
Proof stress level		kpsi	≥100

Cable performance

Item		Parameters
Fiber Count		48
Colored coated fiber	Dimension	250µm±15µm
	Color	Blue,Orange,Green,Brown, Gray,White,Red,Black,Yellow, Purple,Pink,Aqua
Loose tube	Dimension	2.0mm
	Material	PBT
	Color	Blue,Orange,Green,Brown
Filler	Material	PE
	Color	Black
Central Strength Member	Dimension	1.5mm
	Material	Steel wire
Armoured	Material	Aluminium
Inner jacket	Material	PE
	Color	Black
Outer jacket	Material	LSZH
	Color	Blue

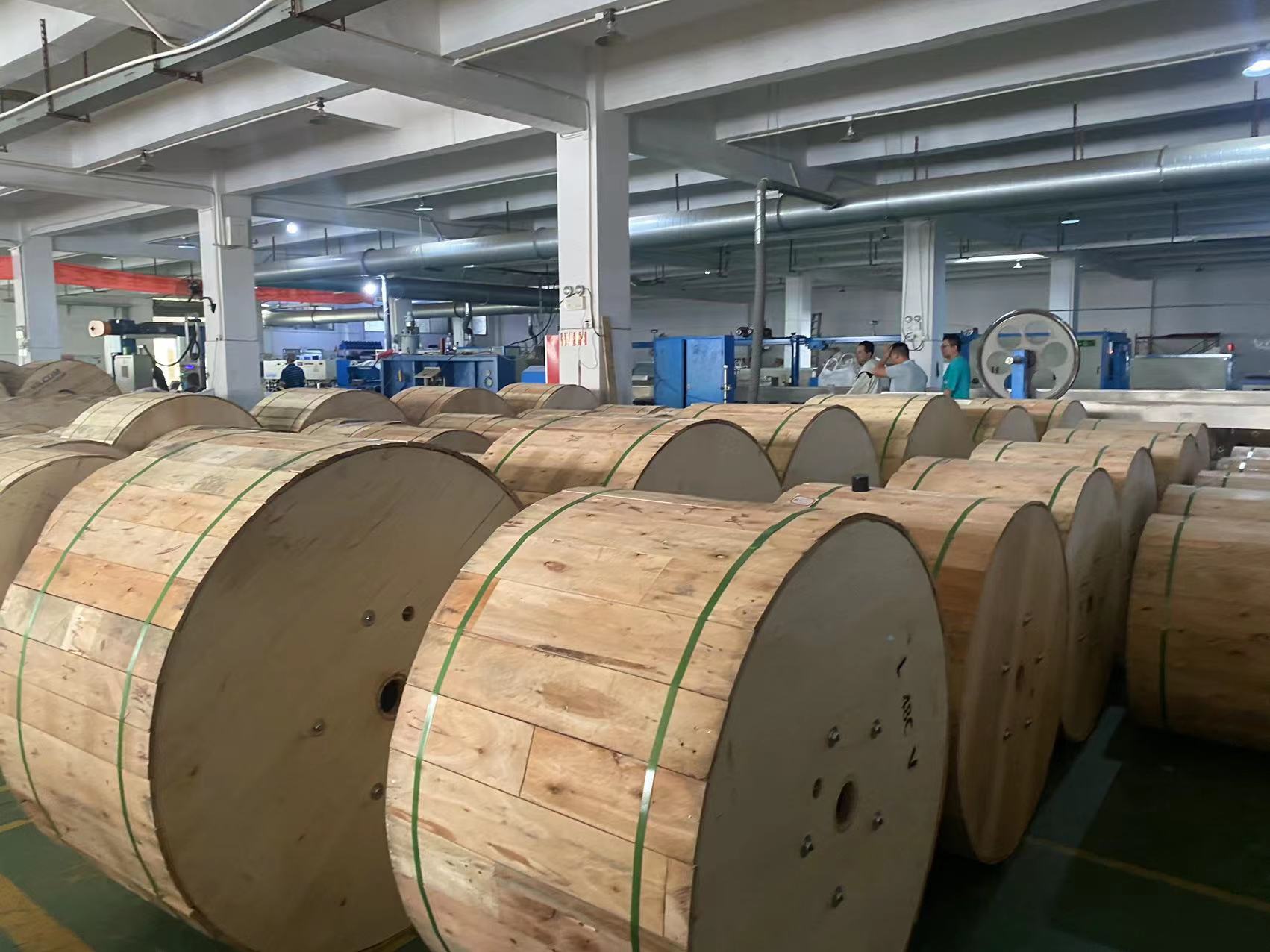

Packing: Plywood drum,2/3/4/5km One Drum or as per your requirements

Shipping:By sea LCL/FCL

Company profile:

Guangzhou jiqian fiber optic cable co.,ltd is a high-tech company group engaged in researching, manufacturing, selling
communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable for 10 years, with ISO9001, FCC, ROHS and CE certificates. We OEM or design any structure of fiber optic cable for you. The main products of our company are: optical fiber cables/FTTH Drop Cable. All of the products are widely used in telecom, railway and other communication products related department, exported to many countries and districts such as North/South America, Europe, Mideast and Southeast Asia.Africa

Exhibition

Certification:

FAQ:

1.Are you the real manufacturer?
Yes. We are the real manufacturer with 13 years history.

2.What is your fiber brand ?
YOFC/Fiberhome



3.Do you provide samples?is it free or charged?Yes,samples are for free,just pay for freight

4.Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.

5.What is your warranty period?
25-30 years for outdoor fiber optic cable

6.Which kind of certification you have ?
ISO9001,FCC,ROHS,CE

7.What is your delivery time?
Usually 5-7 working days

8.What is your payment way?
T/T, L/C, Western Union

9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
