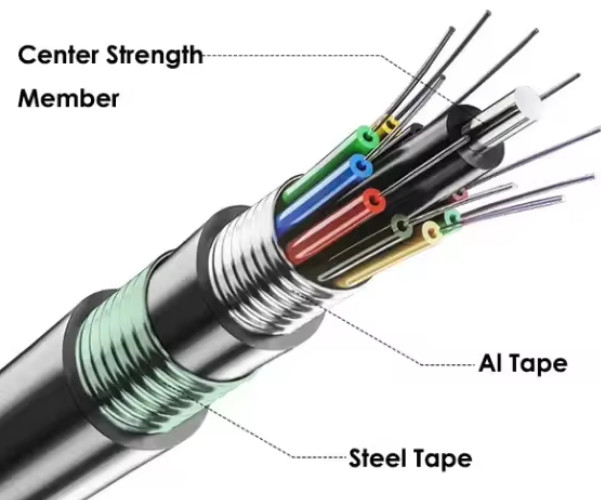

The GYTA53 cable is constructed by inserting a 250μm fiber into a
loose tube made of a high-modulus material filled with a
water-repellent compound. The center of the core is a metal
reinforced core. For some cores, the metal reinforced core needs to
be extruded with a layer of polyethylene (PE). The loose tube (and
the filling rope) is twisted around the center reinforcing core
into a compact and round core, and the gap in the core is filled
with a water blocking filler. After the plastic coated aluminum
strip (APL) is longitudinally wrapped, a polyethylene inner sheath
is extruded, and the double-coated plastic strip (PSP) is
longitudinally wrapped and extruded into a polyethylene sheath to
form a cable.
Applications:
Applied to campus buildings in the connection, long-distance
network, the main line system, the local loop or branch network,
severe outdoor humid environment, temperature changes in the
environment.
Fiber parameter:
| Item | Unit | Specification |
| Fiber Type | G.652D |
Mode field diameter | 1310nm | mm | 9.2±0.4 |
| 1550nm | mm | 10.4±0.8 |
| Cladding diameter | mm | 125.0±1 |
| Cladding non-circularity | % | ≤1.0 |
| Core/cladding concentricity error | mm | ≤0.5 |
| Coating diameter | mm | 245±5 |
| Coating non-Circularity | % | ≤6.0 |
| Coating/cladding concentricity error | mm | ≤12.0 |
| Cable cut-off wavelength | nm | ≤1260 |
Attenuation Coefficient | 1310nm | dB/km | 0.36 |
| 1550nm | dB/km | ≤0.22 |
| Proof stress level | kpsi | ≥100 |
Dimensions of Cable Constructions
Fiber count |
Structure |
Fibers per tube |
Loose tube diameter (mm) |
CSM diameter/pad diameter (mm) | Nominal Thickness of outer jacket (mm) |
Cable diameter/ Height (mm) |
Cable weight (kg/km) | | 4 | 1+5 | 4 | 1.8±0.1 | 1.4/1.4 | 1.4 | 8.5±0.3 | 75 | | 6 | 1+5 | 6 | 1.85±0.1 | 1.4/1.4 | 1.4 | 8.5±0.3 | 75 | | 8 | 1+5 | 8 | 1.9±0.1 | 1.4/1.4 | 1.4 | 8.5±0.3 | 75 | | 12 | 1+5 | 6 | 1.85±0.1 | 1.4/1.4 | 1.4 | 8.5±0.3 | 75 | | 24 | 1+5 | 6 | 1.85±0.1 | 1.4/1.4 | 1.4 | 8.5±0.3 | 75 | | 36 | 1+6 | 12 | 1.95±0.1 | 1.5/1.5 | 1.6 | 8.8±0.3 | 85 | | 48 | 1+5 | 12 | 1.95±0.1 | 1.5/1.5 | 1.6 | 9.3±0.3 | 90 | | 60 | 1+5 | 12 | 1.95±0.1 | 1.6/1.6 | 1.6 | 9.3±0.3 | 90 | | 72 | 1+6 | 12 | 1.95±0.1 | 2.0/2.0 | 1.6 | 9.6±0.3 | 95 | | 96 | 1+8 | 12 | 1.95±0.1 | 1.4/3.2 | 1.6 | 11.5±0.3 | 120 | | 144 | 1+12 | 12 | 1.95±0.1 | 2.0/5.7 | 1.8 | 14.2±0.3 | 185 | | 216 | 1+6+12 | 12 | 1.95±0.1 | 2.0/2.0 | 1.8 | 14.5±0.3 | 200 | | 288 | 1+9+15 | 12 | 1.95±0.1 | 2.0/3.7 | 1.8 | 16.2±0.3 | 240 |
|
We produce and test cable comply with following standard:
| Mechanical Performance |
| Max Tension Performance | IEC 60794–1-2-E |
| Max. Operation Tension | IEC 60794–1-2-E1 |
| Crush Test | IEC 6079 –1-2-E3 |
| Impact Test | IEC 60794–1-2-E4 |
| Repeated Bending | IEC 60794–1-2-E6 |
| Torsion Test | IEC 60794–1-2-E7 |
| Cable bend | IEC 60794–1-2-E11A |
| Attenuation Coefficient | ITU-T G.652 |
| Structural Test | IEC-60793-1-20 |
| Environmental Performance |
| Temperature Cycling | IEC 60794–1-2-F1 |
| Water Penetration | IEC 60794–1–2-F5B |
| Filing Compound Flow | IEC 60794-1-E14 |
Packing
1/2/3/4km or customized length export wooden drum.
Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL
,UPS,TNT.....)
Company:
1.Guangzhou jiqian fiber optic cable co.,ltd is a high-tech company
group engaged in researching, manufacturing, selling communication
products with our import and export rights.
2. Our corporation is a professional manufacturer of fiber optic
cable for 10 years, with ISO9001, FCC, ROHS and CE certificates.
Certificate:
FAQ
1.Are you tradning company or manufacturer?
We are the manufacturer with 10 years' experience ,we are
specialized in research,development and production
for fiber optic cable. Our factory is in Guangzhou city,welcome to
visit us!
2.About the quality?
We will delivery before tested every fibers when finished
production.
After price confirmation, you can require for free samples to check
our quality.
3.Can you accept small order?
Yes, small order is available. We support new project of our
customers, as we know business is always from small order.
4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order
quantity.
But pls be assured that we will arrange your goods asap after your
payment .
5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the
product. Any idea from you is available.
