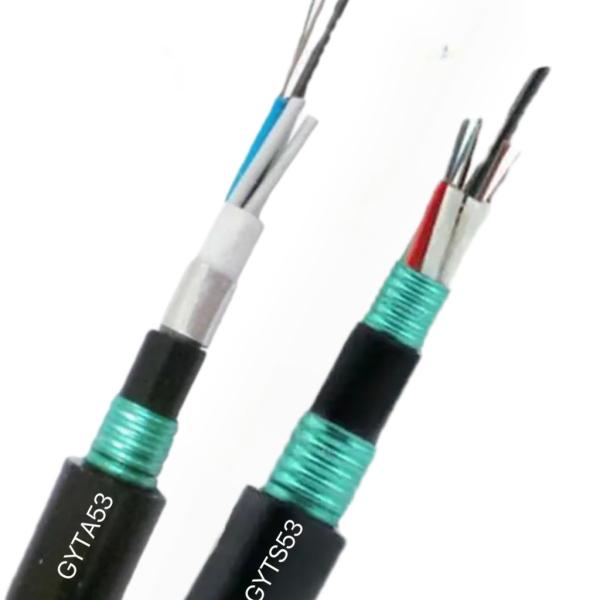

Characteristics:
* Good mechanical and temperature performance.
* High strength loose tube that is hydrolysis resistant.
* Special tube filling compound ensure a critical protection of
fiber.
* Crush resistance and flexibility.
The following measures are taken to ensure the cable watertight.
- Steel wire used as the central strength member.
- Loose tube filling compound.
- 100% cable core filling.
- APL moisture barrier.
- PSP enhancing moisture-proof.
- Water-blocking material.
■Adapted to Outdoor distribution.
■Long distance and local area network communication.
■Suitable for aerial .pipeline layingmethod.
Fiber parameter:
| Item | Unit | Specification |
| Fiber Type | G.652D |
Mode field diameter | 1310nm | mm | 9.2±0.4 |
| 1550nm | mm | 10.4±0.8 |
| Cladding diameter | mm | 125.0±1 |
| Cladding non-circularity | % | ≤1.0 |
| Core/cladding concentricity error | mm | ≤0.5 |
| Coating diameter | mm | 245±5 |
| Coating non-Circularity | % | ≤6.0 |
| Coating/cladding concentricity error | mm | ≤12.0 |
| Cable cut-off wavelength | nm | ≤1260 |
Attenuation Coefficient | 1310nm | dB/km | 0.36 |
| 1550nm | dB/km | ≤0.22 |
| Proof stress level | kpsi | ≥100 |
Dimensions of Cable Constructions
Fiber count |
Structure |
Fibers per tube |
Loose tube diameter (mm) |
CSM diameter/pad diameter (mm) | Nominal Thickness of outer jacket (mm) |
Cable diameter/ Height (mm) |
Cable weight (kg/km) | | 4 | 1+5 | 4 | 1.8±0.1 | 1.4/1.4 | 1.4 | 8.5±0.3 | 75 | | 6 | 1+5 | 6 | 1.85±0.1 | 1.4/1.4 | 1.4 | 8.5±0.3 | 75 | | 8 | 1+5 | 8 | 1.9±0.1 | 1.4/1.4 | 1.4 | 8.5±0.3 | 75 | | 12 | 1+5 | 6 | 1.85±0.1 | 1.4/1.4 | 1.4 | 8.5±0.3 | 75 | | 24 | 1+5 | 6 | 1.85±0.1 | 1.4/1.4 | 1.4 | 8.5±0.3 | 75 | | 36 | 1+6 | 12 | 1.95±0.1 | 1.5/1.5 | 1.6 | 8.8±0.3 | 85 | | 48 | 1+5 | 12 | 1.95±0.1 | 1.5/1.5 | 1.6 | 9.3±0.3 | 90 | | 60 | 1+5 | 12 | 1.95±0.1 | 1.6/1.6 | 1.6 | 9.3±0.3 | 90 | | 72 | 1+6 | 12 | 1.95±0.1 | 2.0/2.0 | 1.6 | 9.6±0.3 | 95 | | 96 | 1+8 | 12 | 1.95±0.1 | 1.4/3.2 | 1.6 | 11.5±0.3 | 120 | | 144 | 1+12 | 12 | 1.95±0.1 | 2.0/5.7 | 1.8 | 14.2±0.3 | 185 | | 216 | 1+6+12 | 12 | 1.95±0.1 | 2.0/2.0 | 1.8 | 14.5±0.3 | 200 | | 288 | 1+9+15 | 12 | 1.95±0.1 | 2.0/3.7 | 1.8 | 16.2±0.3 | 240 |
|
We produce and test cable comply with following standard:
| Mechanical Performance |
| Max Tension Performance | IEC 60794–1-2-E |
| Max. Operation Tension | IEC 60794–1-2-E1 |
| Crush Test | IEC 6079 –1-2-E3 |
| Impact Test | IEC 60794–1-2-E4 |
| Repeated Bending | IEC 60794–1-2-E6 |
| Torsion Test | IEC 60794–1-2-E7 |
| Cable bend | IEC 60794–1-2-E11A |
| Attenuation Coefficient | ITU-T G.652 |
| Structural Test | IEC-60793-1-20 |
| Environmental Performance |
| Temperature Cycling | IEC 60794–1-2-F1 |
| Water Penetration | IEC 60794–1–2-F5B |
| Filing Compound Flow | IEC 60794-1-E14 |
Packing
1/2/3/4km or customized length export wooden drum.
Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL
,UPS,TNT.....)
FAQ
1. Are you trading company or manufacturer?
We are the manufacturer and trade with 10 years' experience ,we are
specialized in research,development and production for GYTS, GYTA
and GYXTW.
2. About the quality?
After price confirmation, you can require for samples to check our
quality.
3. Can you accept small order?
Yes, small order is available. We support new project of our
customers, as we know business is always from small order.
4. What is your delivery time?
Usually about 10-30 days working days, it mainly depend on order
quantity. But pls be assured that we will arrange your goods asap
after your payment .
5. Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the
product. Any idea from you is available.
6. What is your payment way?
T/T, L/C, D/A, D/P, Western Union and Paypal.
