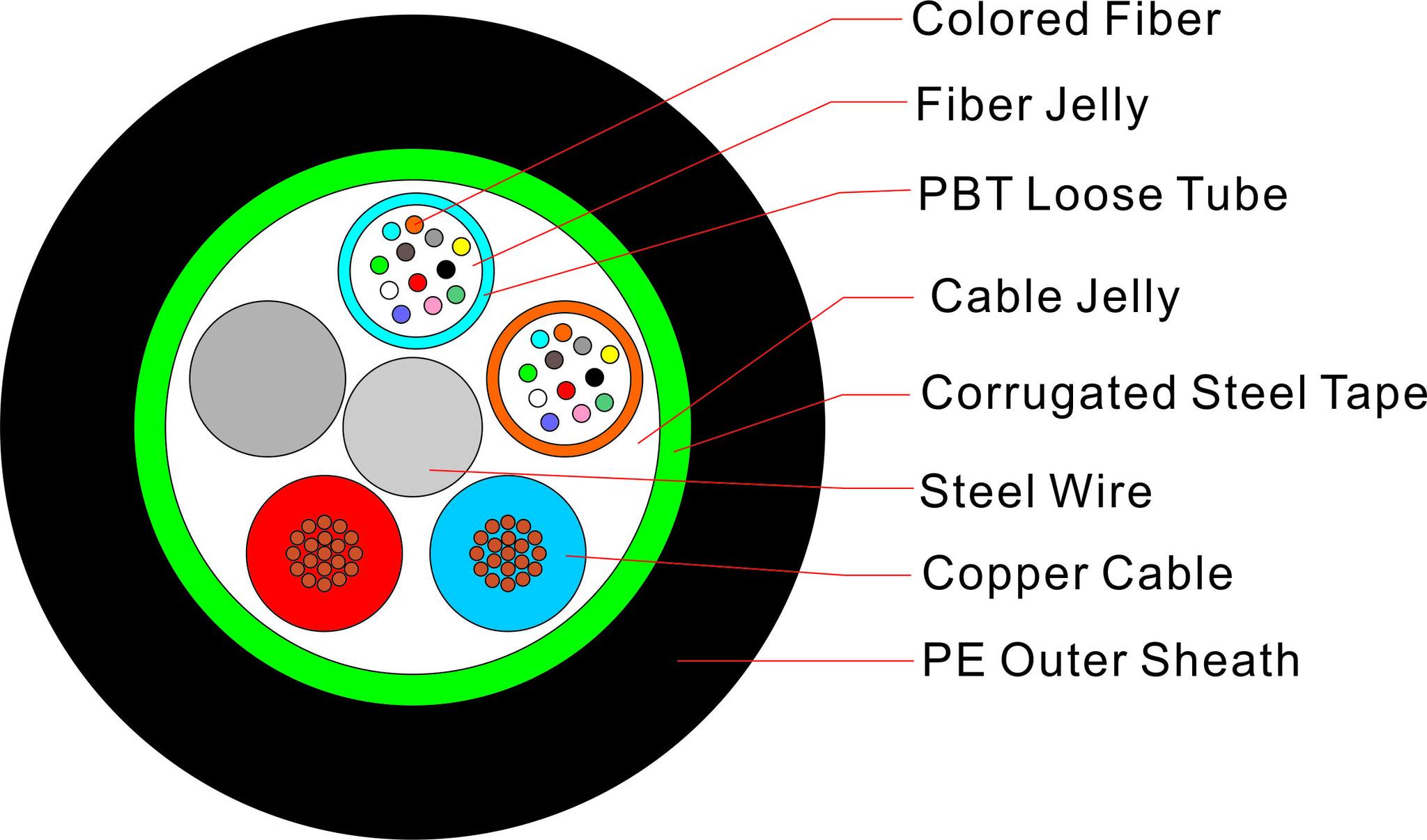

Hybrid Cable/Power Cable 2-12cores GDTS Photoelectric Fiber Optic Cable OPLC

Product Categories

Guangzhou Jiqian Fiber Optic Cable Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Add to Cart

Applications:	1.Used in outdoor applications that require both optical fiber and copper wire elements for communication and power
	2.Copper wire can power remote electronics used in fiber optic communications
	3.Copper wire can also be used for low data rate data transmission
	4.Deployable cables have been used in network and private broadcast applications around the world
	5.Cables can be designed for your custom applications
Standards:	YD/T 901 / IEC 60794-3-10
Temperature Range:	Transportation:	-40℃~+70℃
	Installation:	5℃~+50℃
	In use:	In use:-40℃~+70℃

Optical Characteristics

Item	Specification
Fiber type	G.652D
Attenuation
@ 1310 nm	≤0.36 dB/km
@ 1383 nm	≤0.35 dB/km
@ 1550 nm	≤0.22 dB/km
@ 1625 nm	≤ 0.30 dB/km
Cable Cut-off Wavelength(λcc)	≤1260 nm
Zero Dispersion Wavelength(nm)	1300 ~ 1324 nm
Zero Dispersion Slope	≤0.092 ps/(nm2.km)
Chromatic Dispersion
@ 1288 ~ 1339 nm	≤3.5 ps/(nm. km)
@ 1550 nm	≤18 ps/(nm. km)
@ 1625 nm	≤22 ps/(nm. km)
PMDQ	≤0.2 ps/km1/2
Mode Field Diameter @ 1310 nm	9.2±0.4 um
Core Concentricity Error	≤0.6 um
Cladding Diameter	125.0±0.7 um
Cladding Non-circularity	≤1.0%
Coating Diameter	245±10 um
Proof Test	100 kpsi (=0.69 Gpa), 1%

Hybrid Cable/Power Cable 2-12cores GDTS Photoelectric Fiber Optic Cable OPLC

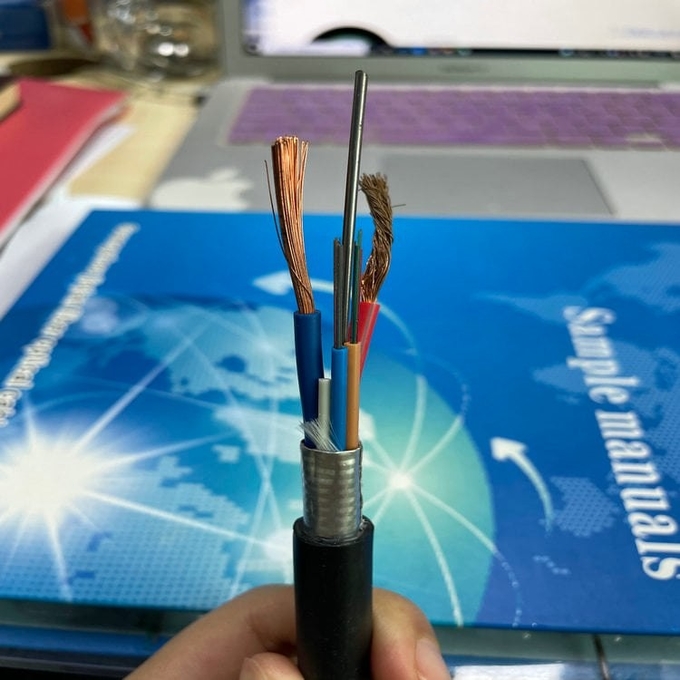

Product Image

Hybrid Cable/Power Cable 2-12cores GDTS Photoelectric Fiber Optic Cable OPLC

Packing&Delivery

1/2/3/4/km in one wooden drum,deliver days:3-7work days

Hybrid Cable/Power Cable 2-12cores GDTS Photoelectric Fiber Optic Cable OPLC

OPLC, GDTS, Photoelectric composite cable,Hybrid fiber optic cable with power copper wire, welcome to inquiry!!
