48 CORE GYTC8S GYTC8A GYXTCS GYFTC8Y53 GYTC8S53 FIGURE 8 FIBER OPTIC CABLE FOR COMMUNICATION

Ask Lasest Price
Brand Name :	JQ
Model Number :	GYTC8S GYTC8A GYXTCS GYFTC8Y53 GYTC8S53
Certification :	ISO9001
Payment Terms :	Western Union, MoneyGram, T/T, L/C
Supply Ability :	100km per 2 day
Delivery Time :	2-4day

Add to Cart

Product Details
Company Profile

48 CORE GYTC8S GYTC8A GYXTCS GYFTC8Y53 GYTC8S53 FIGURE 8 FIBER OPTIC CABLE FOR COMMUNICATION

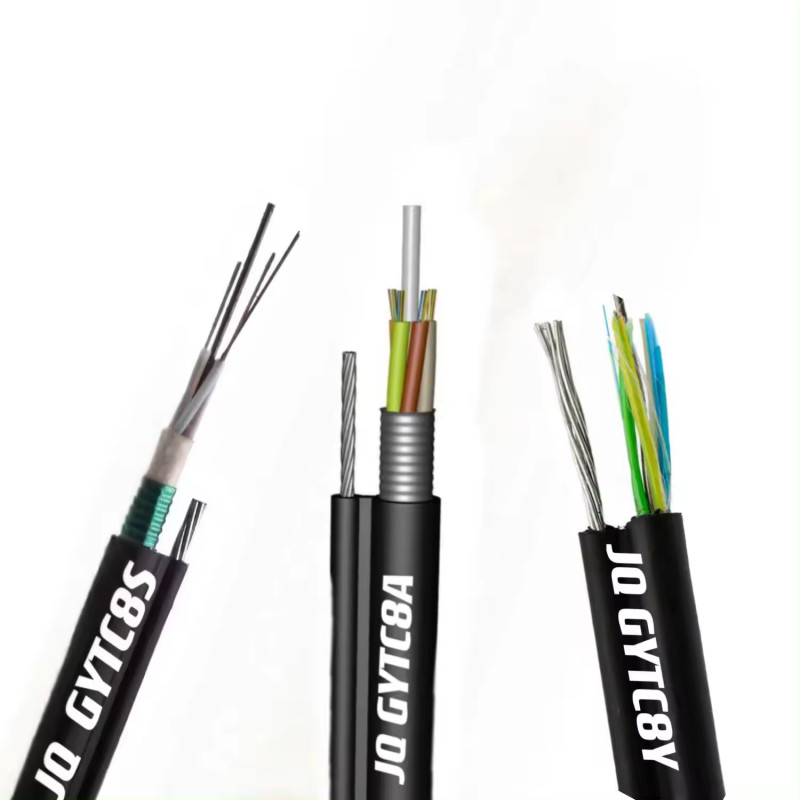

Self-Supporting Figure 8 Fiber Optic cable

figure-8 optical fiber cable with metallic central strength member of steel wire/strand and moisture barrier inner sheath incorporating steel messenger wire suitable for overhead installation as pole-to-pole or pole-topremises.Tubes contain optical single-mode or multimode fibers color coded as per the color coding scheme

48 CORE GYTC8S GYTC8A GYXTCS GYFTC8Y53 GYTC8S53 FIGURE 8 FIBER OPTIC CABLE FOR COMMUNICATION

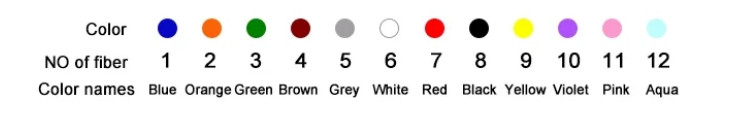

Fiber Color Code

Fiber color in each tube starts from No. 1 Blue.

1	2	3	4	5	6	7	8	9	10	11	12
Blue	Orange	Green	Brown	Grey	White	Red	Black	Yellow	Purple	Pink	Aqua

Color codes for loose tube & filler rod

Tube color starts from No. 1 Blue. If there are fillers, the color is natural.

1	2	3	4	5	6	7	8
Blue	Orange	Green	Brown	Grey	White	Red	Black

Optical Characteristics

		G.652D	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm		≤3.0 dB/km	≤3.0 dB/km
	@1300nm		≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km
	@1550nm	≤0.22 dB/km
Bandwidth (Class A)	@850nm		≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm		≥1000 MHz·km	≥600 MHz·km
Numerical Aperture			0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm

Characteristics
1 Good mechanical and temperature performance
2.High strength loose tube that is hydrolysis resistant
3.Special tube filling compound ensure a critical protection of fiber

48 CORE GYTC8S GYTC8A GYXTCS GYFTC8Y53 GYTC8S53 FIGURE 8 FIBER OPTIC CABLE FOR COMMUNICATION

We can customized fiber cable with color strips(vitta) if you need it!
