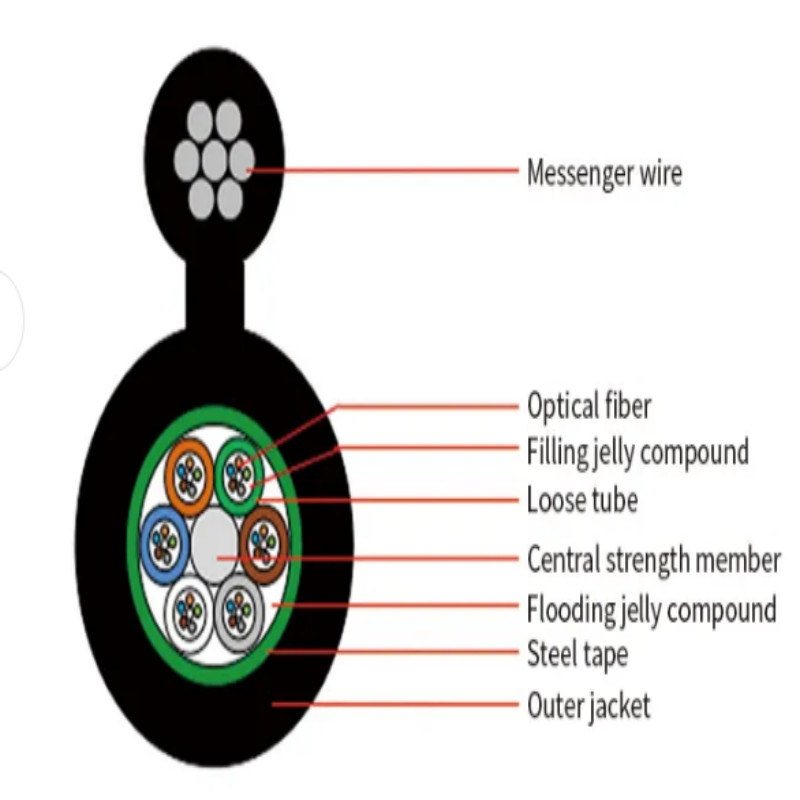

GYTC8S fiber optic cable is an outdoor Steel strand wire
self-supporting cable.
The loose tube is made of high modulus plastics (PBT), which are
filled with water resistant gel. The corrugated steel tape is
applied which provide for crush resistant. Outer sheath is made of
UV resistance PE jacket. Figure-8 self-supporting structure
provides high tensile strength and enables easy and cost saving
aerial installations.
Characteristics:
1. Low attenuation, low dispersion.
2. Outstanding mechanical and environmental performance due to
proper design, accurate excess length and cabling process.
3. Stranded steel tape armor ensures better moisture resistance and
side pressure resistance.
4. Compact construction, light weight, suitable for
self-supporting.
Applicaiton:
The cable is specifically for self-supporting aerial installation.
Long-distance communication, local trunk line, CATV & computer
networks system.
Advantages:
1.Use high-quality optical fiber to ensure that the optical cable
has excellent transmission performance.
2.Accurately control the excess length of the outdoor fiber optic
cable to ensure that the optical cable has excellent mechanical and
high/low-temperature characteristics.
3.Full-section water-blocking structure to ensure good
water-blocking and moisture-proof performance.
4.The loose tube is filled with special grease to protect the
optical fiber critically.
5.The longitudinally clad steel tape strengthens the resistance to
lateral pressure of the optical cable.
Specification:
| item | value |
| Model Number | GYTC8S |
| Type | Outdoor Fiber Optic Cable |
| Place of Origin | Guangdong,China |
| Brand Name | jiqian |
| Structure | Multi loose tube |
| Number of Conductors | ≥ 10 |
| Fiber count | 2-144 Cores |
| Fiber Type | G652D Single mode or as your request |
| Central strength member | Steel wire |
| Loose tube | Jelly filled |
| Loose tube | PBT |
| Jacket Sheath | PE |
| Color | Black or as your need |
| Package | Plywood Reel/customized |
| Application | Aerial,Overhead |
| operating temperature | -40 to +70 |
| Certification | CE/ROHS/ISO9001 |
Optical Characteristics:
| G.655 | 50/125μm | 62.5/125μm | |
| G.652 | |
| Attenuation | '@850nm | | | ≤3.0 dB/km |
| (+20℃) | '@1300nm | | | ≤1.0 dB/km |
| '@1310nm | ≤0.34 dB/km | ≤0.40 dB/km | |
| '@1550nm | ≤0.21 dB/km | ≤0.23 dB/km | |
| '@850nm | | | ≥500 MHz·km |
| '@1300nm | | | ≥1000 MHz·km |
| Numerical Aperture | | | 0.200±0.015NA |
Packing:
With a wide range of product packaging, we can meet any of your
needs so that your products arrive at their destination intact.
Company :
Certification:
FAQ:
1.Can I have a sample order of this product?
Yes,we welcome sample order for you to test and check the quality.
Mixed samples are acceptable as well.
2. What about the lead time?
Sample needs 10 days.Mass quantity need 1 week for production.
3.Do you have any MOQ limit for sample order?
Low MOQ,1 kilometer for sample checking is available.
4.How do you ship goods/how long does it take?
We usually ship by express. DHL,UPS,FedEx or TNT.It usually takes
3~5 days. Airline and Sea shipment also are optional.
5.How to proceed an order for the product?
Firstly,please let us know your requirements or application for.
Secondly, we quote according to your requirements or our
suggestion. Thirdly,customers confirms the samples,place deposit
for formal order.
At last,we arrange the production.
6.Do you offer guarantee for the products?
Yes,we offer 1 year warranty to our formal products.
