    ADSS All Dielectric 48 Core Self Supporting Aerial Fibre Outdoor Cable Single Jacket Span 100m 200m

    Ask Lasest Price
    Brand Name : JQ/OEM
    Model Number : ADSS
    Certification : CE/ISO9001
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 8000 kilometers per month
    Delivery Time : 2-5days
    • Product Details
    • Company Profile

    ADSS All Dielectric 48 Core Self Supporting Aerial Fibre Outdoor Cable Single Jacket Span 100m 200m

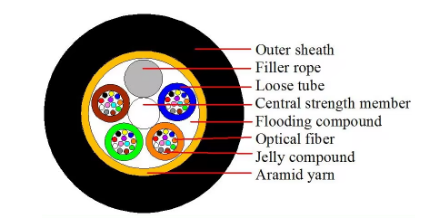

    ADSS cable is loose tube stranded. Fibers, 250μm, are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. It is covered with stranded layer of aramid yarns and then the cable is completed with PE outer sheath.
    The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV, PE outer sheath is applied. FOR power lines equal to or over 110kV, AT outer sheath is applied. The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.
    ADSS All Dielectric 48 Core Self Supporting Aerial Fibre Outdoor Cable Single Jacket Span 100m 200mADSS All Dielectric 48 Core Self Supporting Aerial Fibre Outdoor Cable Single Jacket Span 100m 200m
    Feature:
    * Can be installed without shutting off the power.
    * Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops.
    * Large span lengths.
    * Good performance of tensile strength and temperature.
    * The design life span is 30 years.

    Applications:
    Situation of large span.
    Long distance communication system.
    A long span can reach 1500M and the life span is more than 30 years.
    Areas of strong electric field, multi-thunder, etc.

    Specification:

    Packing and delivry

    Delivery For large orders: by sea (LCL or FCL) For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)

    Packaging Details Wooden roll, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed;

    Free printing

    We provide free cable printing service, you can print the information you need on the cable jacket. For example, company name, product features.

    Company Profile:

    ADSS All Dielectric 48 Core Self Supporting Aerial Fibre Outdoor Cable Single Jacket Span 100m 200mADSS All Dielectric 48 Core Self Supporting Aerial Fibre Outdoor Cable Single Jacket Span 100m 200m

    WHY CHOOSE US:

    ADSS All Dielectric 48 Core Self Supporting Aerial Fibre Outdoor Cable Single Jacket Span 100m 200m

    Certification:

    ADSS All Dielectric 48 Core Self Supporting Aerial Fibre Outdoor Cable Single Jacket Span 100m 200m

    FAQ:

    Q1. Can I have a sample order for this product?
    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
    Q2. What about the lead time?
    A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity.
    Q3. Do you have any MOQ limit for sample order?
    A: Low MOQ, 1pc for sample checking is available
    Q4. How do you ship the goods and how long does it take to arrive?
    A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
    Q5. How to proceed an order for the product?
    A: Firstly let us know your requirements or application.
    B.Secondly We quote according to your requirements or our suggestions.
    C.Thirdly customer confirms the samples and places deposit for formal order.
    D.Fourthly We arrange the production.


    We Support OEM and Customize products.
