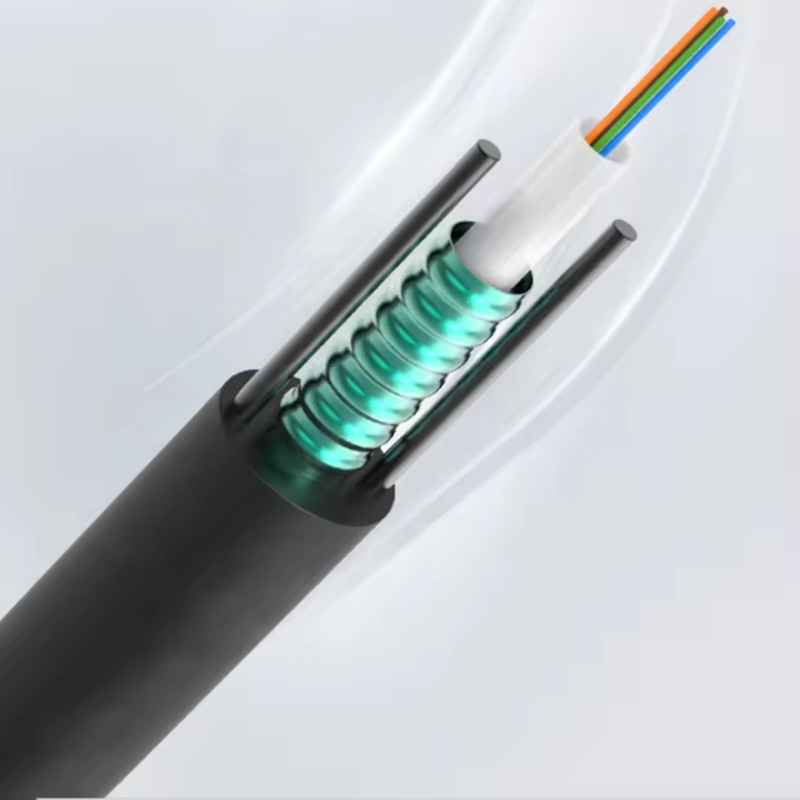

GYXTW AERIAL ARMORED FIBER OPTIC CABLE WITH STEEL WIRE MESSENGER
Product Description
Fiber:
2-24 fibers
Uni-loose tube gel-filled
Armor:
Corrugated steel tape
Strength Member:
Embedded steel wire
OuterJacket:
Black UV-and moisture-resistant polyethylene (PE).
Performance of Cabled Optical Fiber The performance of cabled optical fiber (ITU-T Rec. G.652D)
| | |
| | |
| | |
Attenuation coefficient @ 1310 nm @ 1383 nm @ 1550 nm @ 1625 nm | ≤ 0.36 dB/km ≤0.35 dB/km ≤0.22 dB/km ≤0.25 dB/km |
| | |
| | |
Zero-dispersion wavelength | |
| | |
Chromatic dispersion @ 1288 ~ 1339 nm @ 1271 ~ 1360 nm @ 1550 nm @ 1625 nm | ≤3.5 ps/(nm. km) ≤5.3 ps/(nm. km) ≤18 ps/(nm. km) ≤22 ps/(nm. km) |
| | |
Mode field diameter @ 1310 nm | |
Core / Clad concentricity error | |
| | |
| | |
| | |
| | |
Temperature dependence 0℃~ +70℃ @ 1310 & 1550nm | |
Cable structure and parameter
| | | | Sheath thickness (nominal*) | Overall diameter (nominal**) | |
| | | | | |
| | | | | | |
| | | | | | |
* The nominal sheath thickness may have a tolerance with 0.2mm.
* * The nominal overall diameter may have a tolerance with 0.2mm.
Cable Parameters
| Items | Specifications |
| Fiber Count | 2~24 |
| Colored Coating Fiber | Dimension | 250μm+15μm |
| Color | Blue,Orange,Green,Brown,Gray,White |
| Loose Tube | Dimension | 2.0mm±0.05mm |
| Material | PBT |
| Color | Natural |
| Strength Member | Diameter | 1.0mm |
| Material | Steel |
| Outer Jacket | Dimension | 8.0mm±0.1mm |
| Material | PE |
| Color | Black |
Product Image
Application
Suitable for Duct / Aerial
Storage / Operating Temperature: -40℃~+70℃
| Quantity(km) | Samples | 1-100km | 100-1000km |
| Earliest time | 1days | 3-5 work days | 5-7 work days |
Packing&Delivery
1/2/3/4/5 km in one wooden drum
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.1-5km/roll. Packed by wooden drum. Other packing available according to client's Request.
