Submarine Optical Fiber Cable GYTA33
GYTA33 optical fiber cable is full cross-section water-blocking
structure to ensure good water blocking and moisture resistance.
Loose tube is filled with special ointment for a key protection of
fiber. The phosphate wire center stiffening member is of high
modulus and corrosion resistance. Double-sided vertically-clad
laminated corrugated aluminum tape with thin round steel wire armor
ensures the mechanical resistance to compression, tensile, and
ballistic performance, and meets the application requirements of
climbing direct burial and underwater laying.

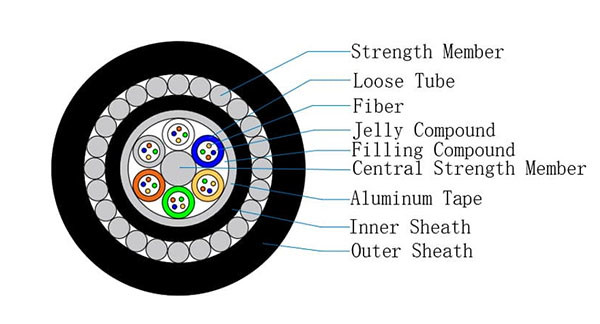

Product Construction
Cable Picture
Application
Suitable for directly buired laying or Underwater method
Optical Characteristics
| Items | Unit | Specification |
| G652D |
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 |
| Cladding Diameter | um | 124.8±0.7 |
| Cladding Non-Circularity | % | ≤0.7 |
| Core-Cladding Concentricity Error | um | ≤0.5 |
| Coating Diameter | um | 245±5 |
| Coating Non-Circularity | % | ≤6.0 |
| Cladding-Coating Concentricity Error | um | ≤12 |
| Cable Cutoff Wavelength | nm | acc≤1260 |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 |
Technical Parameters
item | value |
Model Number | GYTA33 |
Type | Outdoor Fiber Optic Cable |
Place of Origin | Guangdong,China |
Brand Name | jiqian |
Number of Conductors | ≥ 10 |
Fiber count | 2-288 Cores |
Fiber Type | G652D Single mode or as your request |
Central strength member | steel wire |
Armoured | Al tape |
Outer Sheath | PE |
Cable Structure | Multi-Loose Tube Aluminum Tape armor |
Color | Black or as your need |
Application | Direct burial, underground,sea |
Certification | CE/ROHS/ISO9001 /ANATEL |
Note : This datasheet can only be a reference, but not a supplement
to the contract.
Please contact our sales people for more detailed information
Related-products: GYTA53

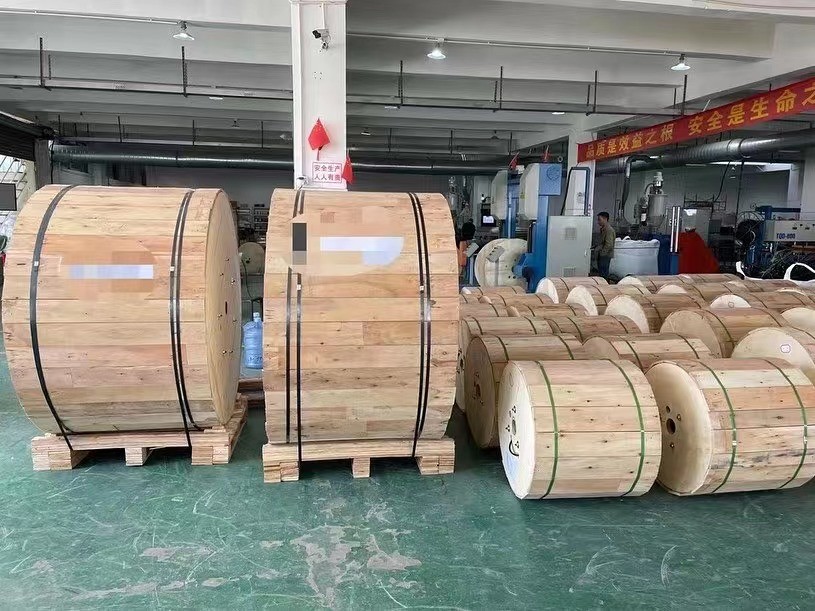

Packing
1/2/3/4km or customized length export wooden drum
professional, environmentally friendly, convenient and efficient
packaging services will be provided.
