    8 12 24 Core GYTC8Y/GYTC8S Strand Fiber Optic Cable Self Supporting Fiber Optic Cable

    Ask Lasest Price
    Brand Name : JQ
    Model Number : GYTC8S/GYXTC8S
    Certification : ISO9001
    • Product Details
    • Company Profile

    8 12 24 Core GYTC8Y/GYTC8S Strand Fiber Optic Cable Self Supporting Fiber Optic Cable

    Aerial Armored Self-supported Figure 8 Fiber Optic Cable 8 12 24 core GYTC8Y/GYTC8S/GYXTC8A/GYXTC8Y

    Applications

    Overhead laying

    The cable is applicable for long-distance and interoffice communication
    8 12 24 Core GYTC8Y/GYTC8S Strand Fiber Optic Cable Self Supporting Fiber Optic Cable

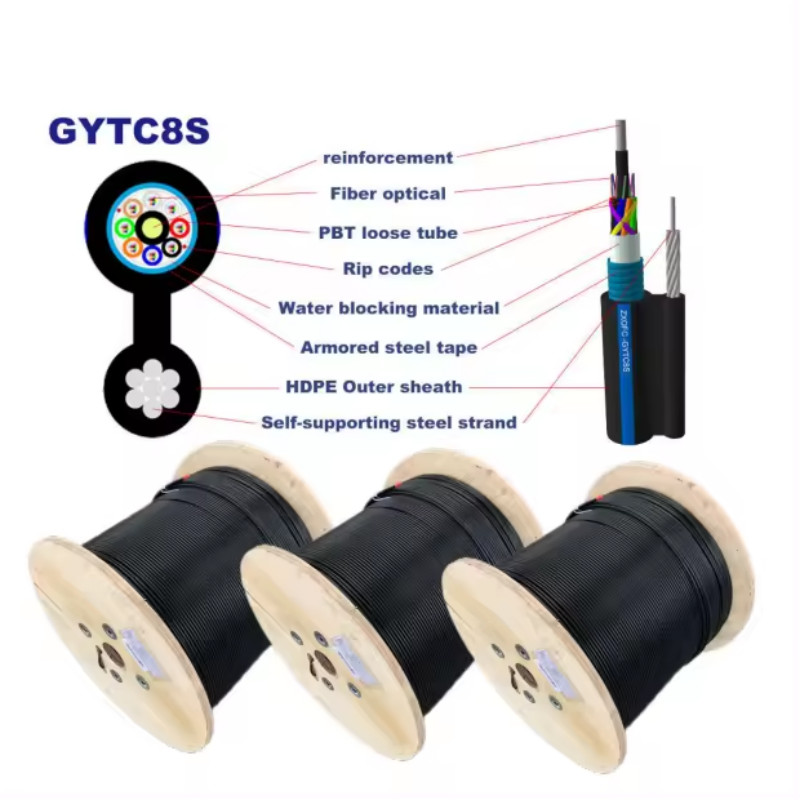

    Cable Structure
    8 12 24 Core GYTC8Y/GYTC8S Strand Fiber Optic Cable Self Supporting Fiber Optic Cable
    8 12 24 Core GYTC8Y/GYTC8S Strand Fiber Optic Cable Self Supporting Fiber Optic Cable
    8 12 24 Core GYTC8Y/GYTC8S Strand Fiber Optic Cable Self Supporting Fiber Optic Cable

    8 12 24 Core GYTC8Y/GYTC8S Strand Fiber Optic Cable Self Supporting Fiber Optic Cable

    Fiber Parameter

    ItemsUnitSpecification
    G652D
    Mode Field Diameter1310nmum9.2±0.4
    1550nmum10.4±0.5
    Cladding Diameterum124.8±0.7
    Cladding Non-Circularity%0.7
    Core-Cladding Concentricity Errorum0.5
    Coating Diameterum245±5
    Coating Non-Circularity%6.0
    Cladding-Coating Concentricity Errorum12
    Cable Cutoff Wavelengthnmacc≤1260
    Attenuation(max.)1310nmdB/km0.36
    1550nmdBkm0.22


    Cable Performance

    item
    Specification
    Model Number
    GYFTC8Y
    Type
    Outdoor Fiber Optic Cable
    Place of Origin
    China
    Guangdong
    Brand Name
    Jiqian/OEM
    Strength member
    7*1.0MM stranded steel wires
    Product name
    Outdoor Figure 8 Fiber Optic Cable
    Color
    Black
    JACKET
    PE
    Structure
    Figure 8 shape
    Packing
    Wooden drum
    Dimensions
    9.0*14.5mm
    Fiber Type
    G652D
    Operating temperature
    -40~+75
    Fiber count
    4-144 Count
    MOQ
    1 Kilometers

    Packing & Delivery

    8 12 24 Core GYTC8Y/GYTC8S Strand Fiber Optic Cable Self Supporting Fiber Optic Cable

    8 12 24 Core GYTC8Y/GYTC8S Strand Fiber Optic Cable Self Supporting Fiber Optic Cable

    Test report and certification enclosed on each drum
    OEM Services
    Outside package customize
    Logo printing for Free
