Underground Double Sheath GYTS53 Factory Fiber Optic Cable Gyta53 Fiber Cable

Cable Performance

Product name	GYTS53
Color	BLACK/customization
Fiber Type	Single/Multi mode optical fiber
Conductor Material	optical fiber
Jacket Material	PE/LSZH/PVC/Nylon
Length	2/3 kilometers
Color	BLACK/customization
Application	Communication cable
Usage	Communication security cable
Core	4~144

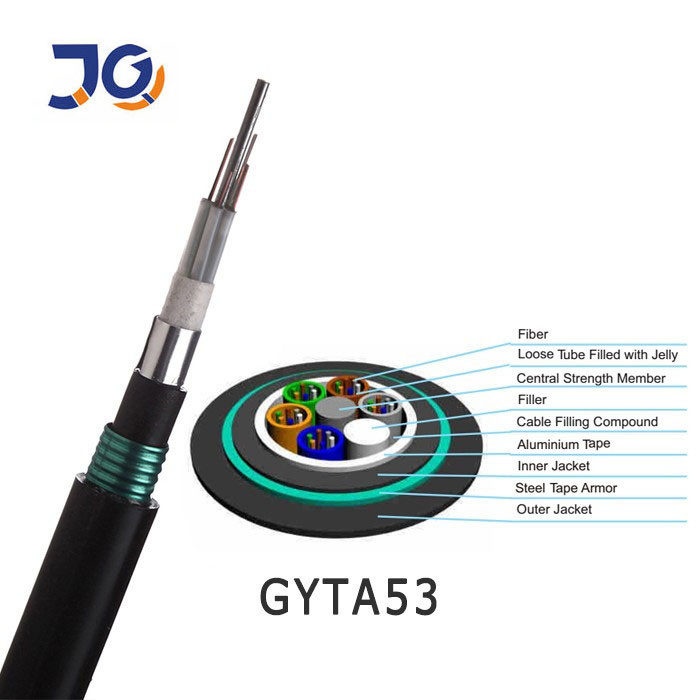

Cable Structure

Underground Double Sheath GYTS53 Factory Fiber Optic Cable Gyta53 Fiber Cable

Suitable for directly buired laying method

Underground Double Sheath GYTS53 Factory Fiber Optic Cable Gyta53 Fiber Cable

High quality long distance transmission fiber Steel Tape Armored

and Water-Resistant Brand NEW PE or HDPE cable sheath

Fiber Parameter

Items		Unit	Specification
Items		Unit	G652D
Mode Field Diameter	1310nm	um	9.2±0.4
Mode Field Diameter	1550nm	um	10.4±0.5
Cladding Diameter		um	124.8±0.7
Cladding Non-Circularity		%	≤0.7
Core-Cladding Concentricity Error		um	≤0.5
Coating Diameter		um	245±5
Coating Non-Circularity		%	≤6.0
Cladding-Coating Concentricity Error		um	≤12
Cable Cutoff Wavelength		nm	acc≤1260
Attenuation(max.)	1310nm	dB/km	≤0.36
Attenuation(max.)	1550nm	dBkm	≤0.22

Underground Double Sheath GYTS53 Factory Fiber Optic Cable Gyta53 Fiber Cable

Note : This datasheet can only be a reference, but not a supplement to the contract.

Please contact our sales people for more detailed information

Packing & Delivery

1/2/3/4km or customized length export wooden drum

Underground Double Sheath GYTS53 Factory Fiber Optic Cable Gyta53 Fiber Cable

Test report and certification enclosed on each drum

OEM Services

Outside package customize

Logo printing for Free

Contact me at +86 18122384553 to get free sample.
