FTTH Mini Steel Tube Bare Plc Splitter 1x2 1x4 1x8 1x16 Fiber Optical Splitter

Ask Lasest Price
Brand Name :	JQ/OEM
Model Number :	Fiber optic PLC splitter
Certification :	ISO9001 ROHS CE-EMC FCC SDOC
Payment Terms :	L/C, T/T, Western Union,Alipay
Supply Ability :	50000 per month

Add to Cart

Product Details
Company Profile

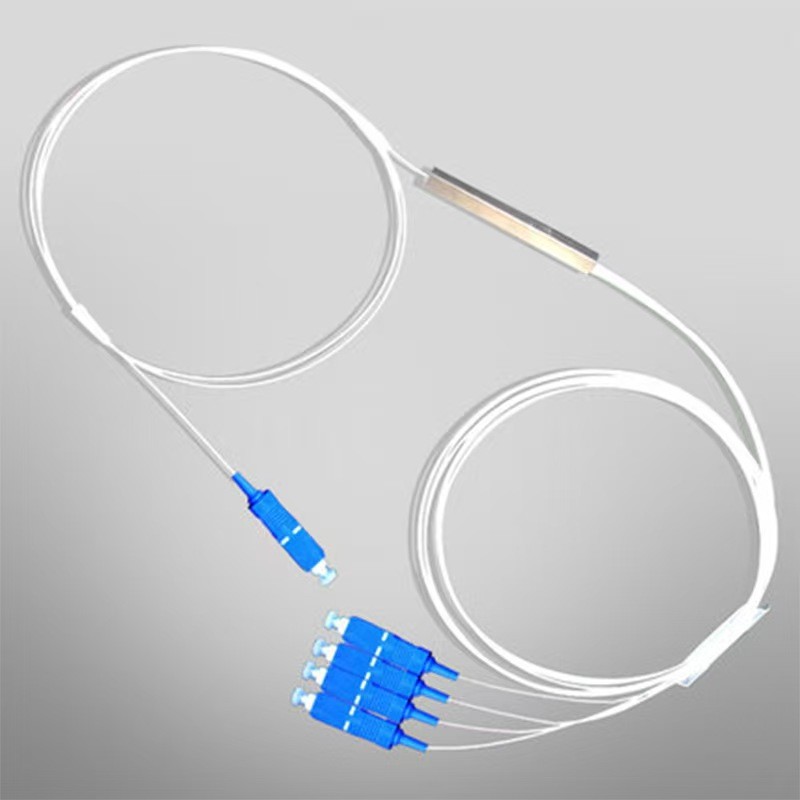

FTTH Mini Steel Tube Bare Plc Splitter 1x2 1x4 1x8 1x16 Fiber Optical Splitter

FTTH mini steel tube bare plc splitter 1x2 1x4 1x8 1x16 fiber optical splitter

Production Description

1.FBT splitter is a type of optical power management device that is fabricated using Fused Biconical Tape technology.

2.It features small size, high reliability, cheap cost and good channel-to-channel uniformity, and is widely used

in PON networks to realize optical signal power splitting.

3.Rollball provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All

products meet GR-1209-CORE and GR-1221-CORE

4.Rollball offers both tree and star type inline couplers/splitters. They provide a reliable solution to

split/combine signals. The splitting ratio ranges from 1x2 to 1x4 ports for tree couplers, and from 2x2

up to 4x4 for star couplers. Available in single, dual, and tripple wavelength windows(1310/1490/1550nm).

FTTH Mini Steel Tube Bare Plc Splitter 1x2 1x4 1x8 1x16 Fiber Optical Splitter

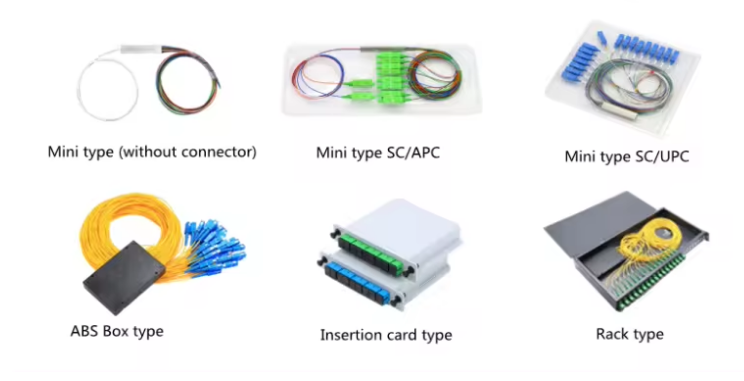

Types

Basic type PLC splitter

SFF type PLC splitter

900um Fan-out Type PLC Splitter

Cassette type PLC splitter Module

Rack type PLC splitter Module

Tray assembly PLC splitter Module

Flat Quick-Connect Termination Type PLC Splitter Module

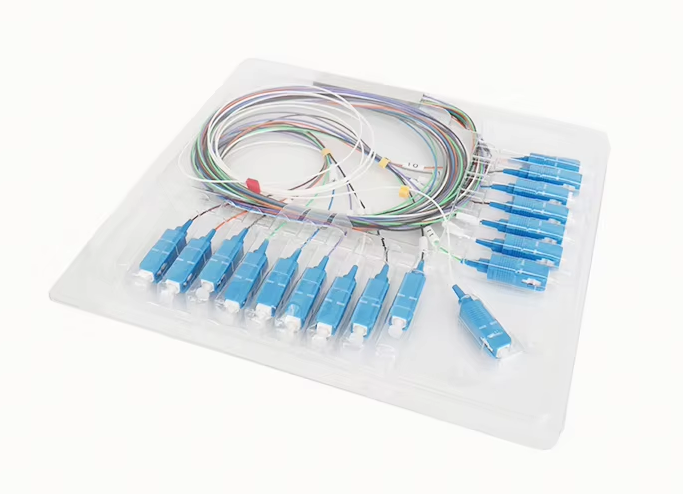

Package detail

Testing

Application

1. FTTX networks

2. PON networks

3. CATV links

4. Data Communication

Specification

1xN PLC Splitter Specification
Operating Wavelength(nm)	1260~1650
Fiber Type	G657A1 or as customers' order
Port Configuration	1x2	1x4	1x8	1x16	1x32	1x64	1x128
Insertion Loss (dB)	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	16.5/16.9	20.5/21.0	23.8/24.2
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2.0	2.5
Polarization Dependent Loss(dB)	0.2	0.2	0.2	0.25	0.3	0.35	0.4
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.5	0.5	0.5	0.5
Temperature Dependent Loss (-40~85 ) (dB)	0.4	0.4	0.4	0.5	0.5	0.5	0.5
Return Loss (dB)			55/50
Operating Temperature			-40~+85
Directivity (dB)			≥ 55
Storage Temperature			-40~+85

Feature

1. Low Insertion Loss

2. Low Polarization Dependent Loss

3. Wide Operation Wavelength

4. Wide Operation Temperature

5. High Stability and Reliability

6. Telcordia GR-1209 and GR-1221 Compliance

7. YD/T 2000.1-2009 Compliance (TLC Product Certificate Compliance)
