ADSS cable is loose tube stranded. Fibers,250μm,are positioned into a loose tube made of high modulus plastics.The tubes are filled with a water-resistant filling compound.
The tubes(and fillers) are stranded around a FRP(Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core.After the cable core is filled with filling compound,it is covered with thin PE(polyethylene)inner sheath.After stranded layer of aramid yarns are applied over the inner sheath as strength member,the cable is completed with PE or AT(anti-tracking)outer sheath.

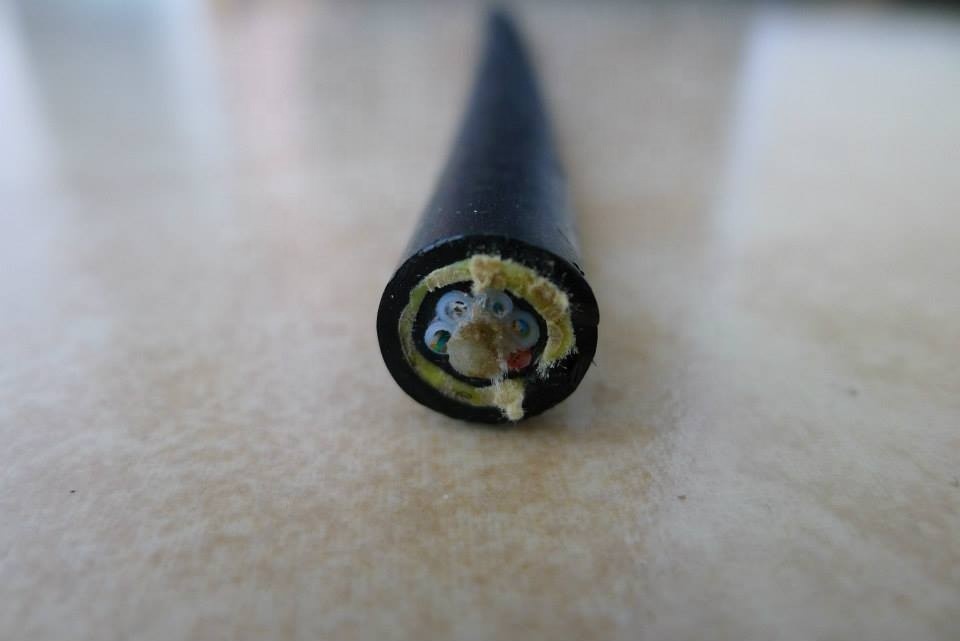

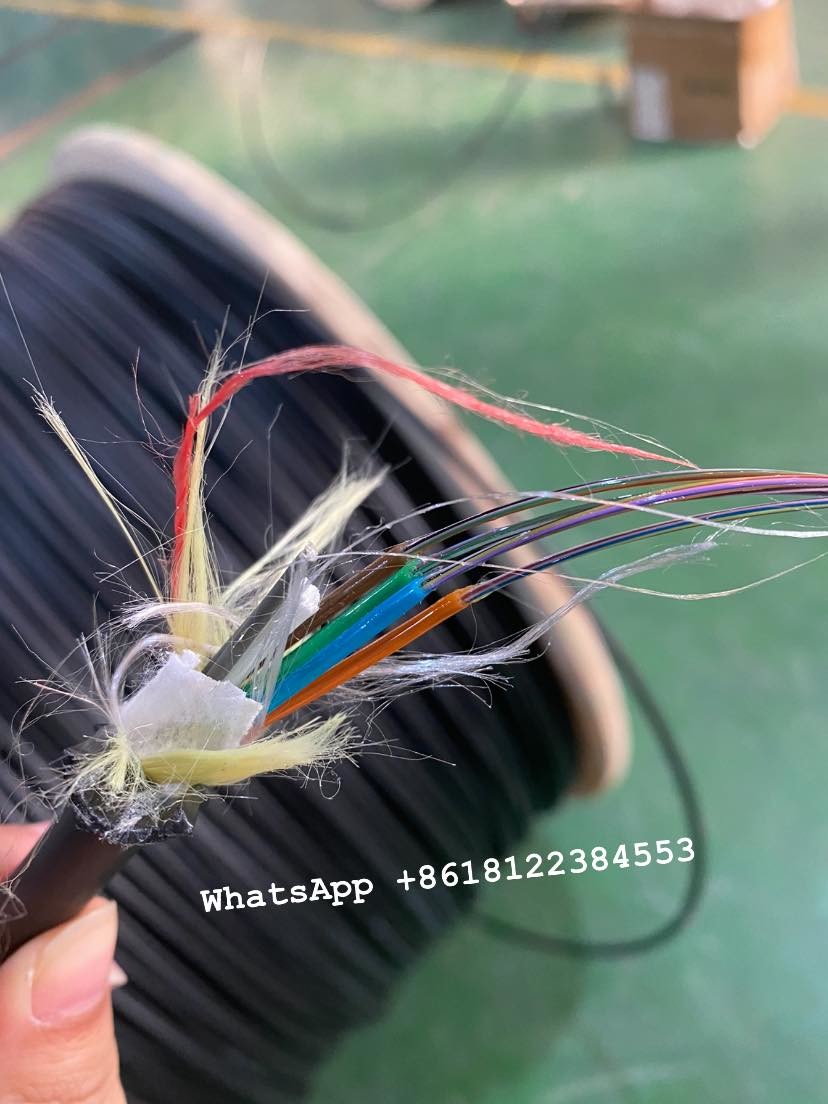

Product Picture
Application
Suitable for Aerial Laying method
Storage / Operating Temperature: -40℃~+70℃
Package Detail
Export Wooden drum,Normal shipping length of the cable will be 2km or 3km.
Other length is also available if required by buyer.
Mark:Usually we only attach the test report on the packaging, but your request is available too.
For example:
A.Company Name
B.Gross/Net Weight
C.Fiber Type
D.Cable Length
We Support OEM and Customize products
Welcome to your inquiry! Welcome to visit our factory!
Contact me at +86 18122384553 to get free sample.
