anti-rodent ARSS fiber cable
what is a ARSS fiber optic cable
1. ARSS cable is loose tube stranded structure. Fibers are
positioned into loose tube made of high modulus plastics.
2. All loose tubes are filled with a water-resistant filling
compound.
3. These tubes ( fillers) are stranded around a FRP(Fiber
Reinforced Plastic) as a non metallic central strength member into
a
compact and circular cable core.
4. A water blocking tape cover all the loose tubes /fillers and
FRP, it can protect the cable from water coming inside .
5. After the water blocking tape, there are aramid yarn +corrugated steel tape as strength member, and then the cable is completed
with PE or HDPE outer sheath.
6. ARSS cable can be single jacket and double jackets.
Features
1. Low attenuation, low dispersion Proper design and precise excess
length control make the cable have outstandingmechanical and
environmental performance.
2. Non-metallic construction is convinence for cable laying without
cutoff the power systems .
3. High strength aramid yarn as strength member ensures high
tensile resistance, small diameter and light weight of the cable,
fitting for
different weather conditions and different installation spans.
4. Special AT(anti-tracking) outer sheath (optional) offers good
electro-erosion resisting performance.

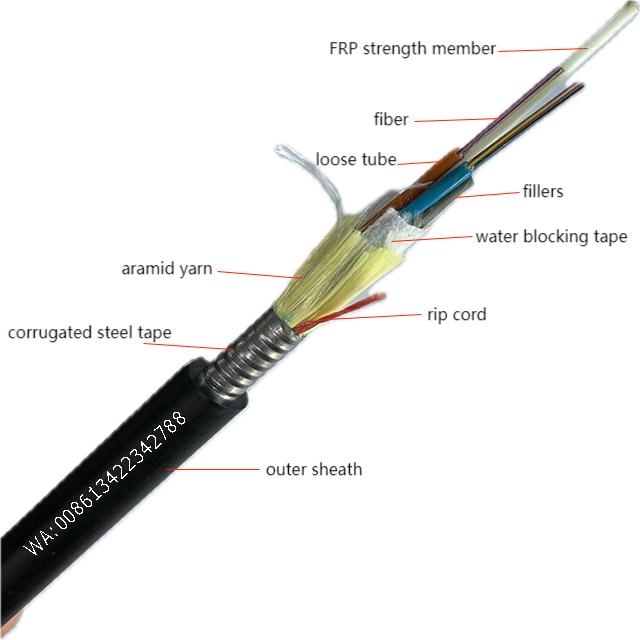

Details picture shows
Structure and Technical Specifications
| fiber count | structure | fiber per tube | losse tube diameter (MM) | FRP/pad diameter (mm) | Thickness of outer jacket(mm) | Ref. Outer
Diameter
(mm) | Ref. Weight
(kg/km) |
| PE Jacket | AT Jacket |
| 4 | 1+6 | 4 | 1.9 | 2.0/2.0 | 1.7±0.1 | 9.8±0.2 | 83 | 93 |
| 6 | 1+6 | 6 | 1.9 | 2.0/2.0 | 1.7±0.1 | 9.8±0.2 | 83 | 93 |
| 8 | 1+6 | 4 | 1.9 | 2.0/2.0 | 1.7±0.1 | 9.8±0.2 | 83 | 93 |
| 12 | 1+6 | 6 | 1.9 | 2.0/2.0 | 1.7±0.1 | 9.8±0.2 | 83 | 93 |
| 24 | 1+6 | 6 | 2.0 | 2.0/2.0 | 1.7±0.1 | 9.8±0.2 | 86 | 96 |
| 48 | 1+6 | 12 | 2.0 | 2.0/2.0 | 1.7±0.1 | 10.0±0.2 | 89 | 99 |
| 72 | 1+6 | 12 | 2.2 | 2.0/2.0 | 1.7±0.1 | 10.5±0.2 | 99 | 109 |
| 96 | 1+8 | 12 | 2.2 | 2.0/3.4 | 1.7±0.1 | 12.0±0.2 | 124 | 136 |
| 144 | 1+12 | 12 | 2.2 | 3.0/7.2 | 1.7±0.1 | 15.2±0.2 | 176 | 189 |
Tips: all the specifications in the abolve table is approximate data,
for more detals specifications,
pls contact our salers.
Fiber type | Attenuation (+20℃) | Bandwidth | Optical cable cut-off wavelength |
|---|
@850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm |
|---|
| G.652 | --- | --- | ≤0.36dB/km | ≤0.22dB/km | --- | --- | ≤1260nm |
| G.655 | --- | --- | ≤0.40dB/km | ≤0.23dB/km | --- | --- | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | --- | --- | ≥500MHz·km | ≥500MHz·km | --- |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | --- | --- | ≥200MHz·km | ≥500MHz·km | --- |
Application: Self-supporting overhead
Packing:
FAQ
1. Q:Are you a factory or trade company?
A: We are a factory
2. Q:What is the MOQ?
A: The MOQ of Fiber Optic cable is 15km.
3. Q:Which brand of fiber do you use?
A:YOFC,Fiberhome,CORNING ,etc
4. Q:Can you accept small order?
A: Yes, small order is available .We support new project of our
customers as we know business is always from small order.
5. Q:What’s delivery time?
A: The general delivery time is 10 days after order confirmed. It
depends on the order quantity.
6. Can you supply customized products and logo?
A:Yes. We supply OEM service.
7. what is your payment terms?
A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before
shipment.
