Arerial & duct GYTS Fiber Optic Cable
Product Description

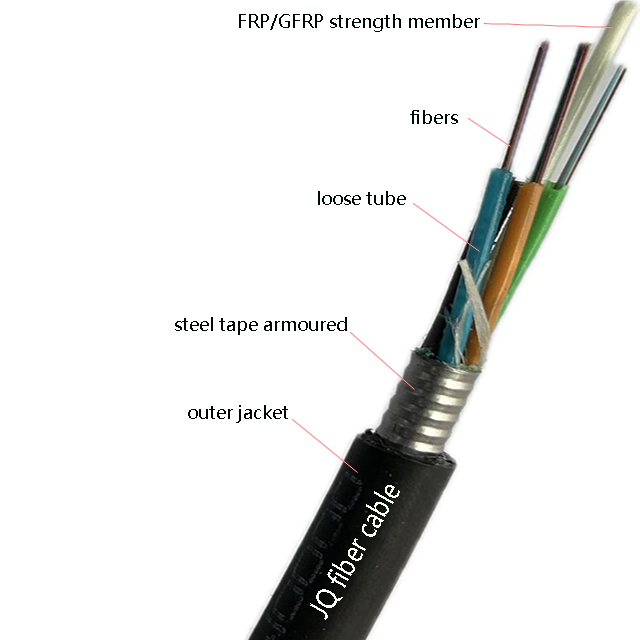

The structure of GYTS optical cable is to put 9/125um single-mode
optical fiber or 50/125um, 62.5/125um multi-mode (OM1, OM2, OM3)
optical fiber (silicon dioxide) into a loose sleeve made of high
water-resisting material, and filling the loose sleeve with
hydrate-resisting material. The center of the cable core is a metal
reinforcement core. For multi-core optical cables, the
reinforcement core needs to add a layer of PE jacket. Loose casing
and filling rope around the center of the reinforcement core are
twisted with compact and round cable cores. The gap in the cable
core is filled with water-blocking filler. Double-sided wrinkled
steel belt (PSP) is wrapped vertically and extruded into a
polyethylene sheath into a cable.
Features
1. double-sided wrinkled steel strip (PSP) improves the
moisture-resistant ability of the optical cable, and the wrinkled
part can be better combined with PE to make the structure stronger.
2. anti-tensile, anti-wear, anti-impact, anti-flattening, can be
repeated dome bending, twisting, bending, bending (the dome bending
angle does not exceed 90°) shooting, etc.,
3. with good mechanical properties.
Applications:
• Adopted to Outdoor distribution.
• Suitable for aerial .pipeline laying method.
• Long distance and local area network communication.
• Applicable temperature range: one 40°C one +60°C
Optical Characteristics
| Items | Unit | Specification |
| G652D |
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 |
| Cladding Diameter | um | 124.8±0.7 |
| Cladding Non-Circularity | % | ≤0.7 |
| Core-Cladding Concentricity Error | um | ≤0.5 |
| Coating Diameter | um | 245±5 |
| Coating Non-Circularity | % | ≤6.0 |
| Cladding-Coating Concentricity Error | um | ≤12 |
| Cable Cutoff Wavelength | nm | acc≤1260 |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 |
Technical Parameters
Fiber
Count | Diameter
(MI) | Weight
(KG/KMI) | Min.Bend Radius | Mlin.Tension
(N) | Crush
(N/100MMl) |
| Static | Dynamic | Long Term | Short Term | Long Term | Short Term |
| 2-30 | 9.2 | 95 | 10
Times
of
Diameter
| 20
Times
of
Diameter
| 1500 | 600 | 1000 | 300 |
| 32-36 | 9.5 | 100 | 1500 | 600 | 1000 | 300 |
| 38-60 | 10.0 | 115 | 1500 | 600 | 1000 | 300 |
| 62-72 | 10.5 | 125 | 1500 | 600 | 1000 | 300 |
| 74-96 | 12.9 | 175 | 1500 | 600 | 1000 | 300 |
| 98-120 | 14.4 | 210 | 1500 | 600 | 1000 | 300 |
| 122-144 | 15.8 | 245 | 1500 | 600 | 1000 | 300 |
| 146-216 | 16.3 | 260 | 1500 | 600 | 1000 | 300 |
| 218-240 | 19.5 | 345 | 1500 | 600 | 1000 | 300 |
| 242-288 | 21.7 | 415 | 1500 | 600 | 1000 | 300 |
Detail product pictures
GYFTS
FAQ
1. Are you tradning company or manufacturer?
We are the manufacturer with 15 years' experience ,we are
specialized in research,development and production
for fiber optic cable,drop cable and path cord ect. Our factory is
in Guangzhou city,welcome to visit us!
2. About the quality?
We will delivery before tested every fibers when finished
production.
After price confirmation, you can require for free samples to check our quality.
3. Can you accept small order?
Yes, small order is available. We support new project of our
customers, as we know business is always from small order.
4. What is your delivery time?
Usually about 3-7days working days,it mainly depend on order
quantity.
But pls be assured that we will arrange your goods asap after your
payment .
5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the
product. Any idea from you is available.
