Brand Name : | JQ/OEM |
Model Number : | GYXTW |
Certification : | ISO9001/CE/ROHS |
Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 200 KM Per day |
Delivery Time : | 3-5dyas |

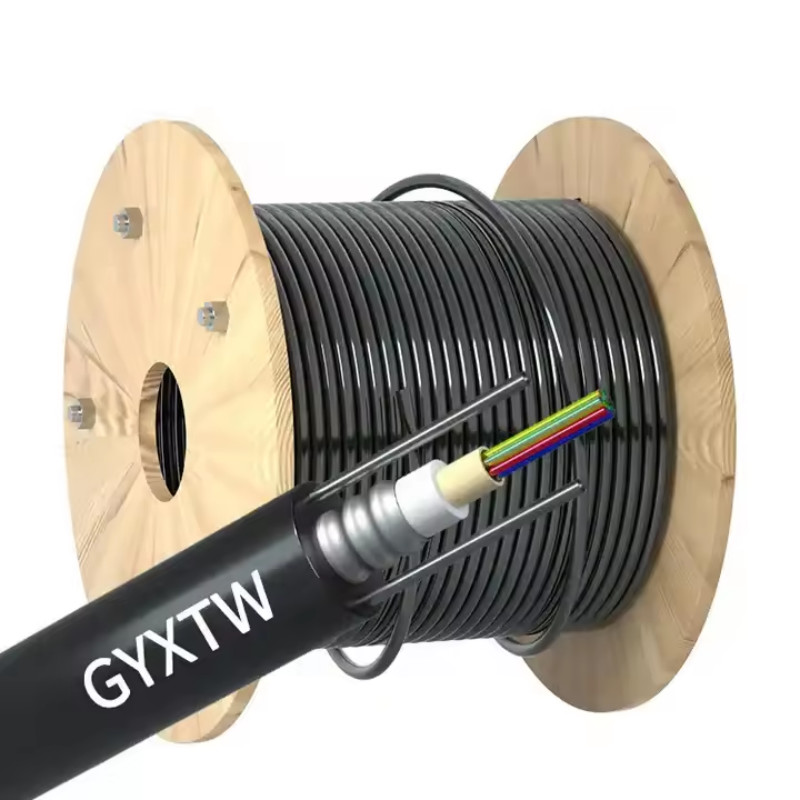

Features of GYXTW fiber optic cable
1. It has good mechanical and temperature properties.
2. The loose casing material itself has good hydrolysis resistance and high strength.
3. The tube is filled with special grease, which provides critical protection to the optical fibre.
4. Good pressure resistance and softness
5. Double-sided plastic-coated steel strip (PSP) improves the moisture-resistant ability of optical cables.
6. Two parallel steel wires ensure the tensile strength of the optical cable.
7. Small diameter, light weight, easy to lay
8. The number of cores is the most commonly used and cost-effective.
Optical Characteristics
Items | Unit | Specification | |
G652D | |||
Mode Field Diameter | 1310nm | um | 9.2±0.4 |
1550nm | um | 10.4±0.5 | |
Cladding Diameter | um | 124.8±0.7 | |
Cladding Non-Circularity | % | ≤0.7 | |
Core-Cladding Concentricity Error | um | ≤0.5 | |
Coating Diameter | um | 245±5 | |
Coating Non-Circularity | % | ≤6.0 | |
Cladding-Coating Concentricity Error | um | ≤12 | |
Cable Cutoff Wavelength | nm | acc≤1260 | |
Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
1550nm | dBkm | ≤0.22 |
Cable Parameters
Items | Specifications | |
Fiber Count | 2~24 | |
Colored Coating Fiber | Dimension | 250μm+15μm |
Color | Blue,Orange,Green,Brown,Gray,White,Red, Black,Yellow,violet,pink,Turquoise | |
Loose Tube | Dimension | 2.0mm±0.05mm |
Material | PBT | |
Color | Natural | |
Strength Member | Diameter | 1.0mm/0.7mm |
Material | Steel | |
Outer Jacket | Dimension | 6.0~9.0mm |
Material | PE | |
Color | Black |
Technical Parameters
Fiber Count | Cable Diameter(mm) | Cable Weight kg/km) | Tensile Strength Long/Short Term (N) | Crush Resistance Long/Short Term (N/100mm) | Bending Radius Static/Dynamic |
2~12 | 8 | 78 | 1000/3000 | 1000/3000 | 10D/20D |
14~24 | 10 | 90 | 1000/3000 | 1000/3000 | 10D/20D |
Application
Usable in Duct / Aerial
Storage / Operating Temperature: -40℃~+70℃
