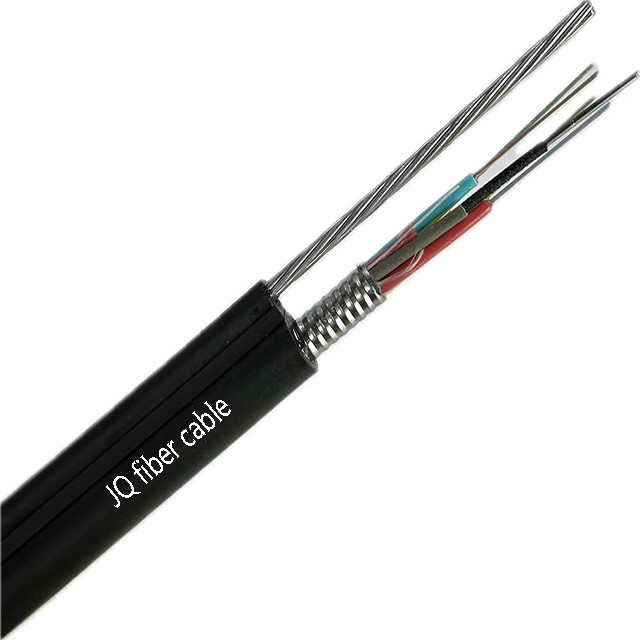

Self-supporting Figure 8 Fiber Optic Cable GYTC8S
Product description:
The structure of the GYTC8S optical cable is to put a single-mode
or multi-mode optical fibre belt into a loose sleeve made of
high-modulus polyester material, and the sleeve is filled with
waterproof compounds. The centre of the cable core is a metal
reinforcement core. The loose sleeve (and the filling rope) is
twisted around the centre reinforcement core to form a compact
round cable core. The gap in the cable core is filled with a
water-blocking filler. After the plastic-coated steel belt (PSP) is
wrapped vertically, it is integrated with the steel wire stranded
into an 8-shaped polyethylene sheath into a cable. This product is
used for self-bearing overhead laying.
Features
1. Single or seven stainless steel or electroplated copper
self-supporting overhead suspension cable structure.
2. Oil filling, multi-bundle tube loose sleeve structure, centre
reinforcement core reinforcement, steel belt armour.
3 .It has good environmental and mechanical properties. *. Sheath
material: PE, LSZH application:
---Steel wire used as the central strength member
---Loose tube filling compound
---100% cable core filling
---PSP enhancing moisture-proof
Optical Characteristics
| Items | Unit | Specification |
| G652D |
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 |
| Cladding Diameter | um | 124.8±0.7 |
| Cladding Non-Circularity | % | ≤0.7 |
| Core-Cladding Concentricity Error | um | ≤0.5 |
| Coating Diameter | um | 245±5 |
| Coating Non-Circularity | % | ≤6.0 |
| Cladding-Coating Concentricity Error | um | ≤12 |
| Cable Cutoff Wavelength | nm | acc≤1260 |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 |
Technical Parameters
| Fiber Model | G.652D |
| Design(Strength Member+Tube&Filler) | 1+5 |
| CentralStrengthMember | Material | Steel Wire |
| Diameter(+0.05)mm | 1.5 |
| LooseTube | Material | PBT |
| Diameter(+0.06)mm | 2 |
| Thickness(+0.03)mm | 0.32 |
| TheMax.CoreNO./Tube | 12 |
| Filler Rope | Material | HDPE |
| Color | White |
| Diameter(+0.06)mm | 2.1 |
| Strand Strength Member | Material | Galvanized Steel |
| Type | φ0.9x3 |
| Armor layer | Material | Steel Tape |
| OuterSheath① | Material | MDPE |
| Thickness(+0.03)mm | 1. |
| OuterSheath① | Material | MDPE |
| Thickness(40.03)mm | 1.8 |
| CableDiameter(土0.2)mm | 9.5*17.8(nominal) |
| CableWeight(+10)kg/km | 160(nominal) |
| Min.installation/N | 1500 |
| Attenuation | 1310nm | 0.35dB/KM |
| 1550nm | 0.21dB/KM |
| Min.bendingradius | Without Tension | 10.0*Cableφ |
| Under Maximum Tension | 20.0xCableφ |
Picture Show
Packing
• Standard Cable Wooden Drum
• Standard reel length: 2/3km/reel, other length is also available
